Overview

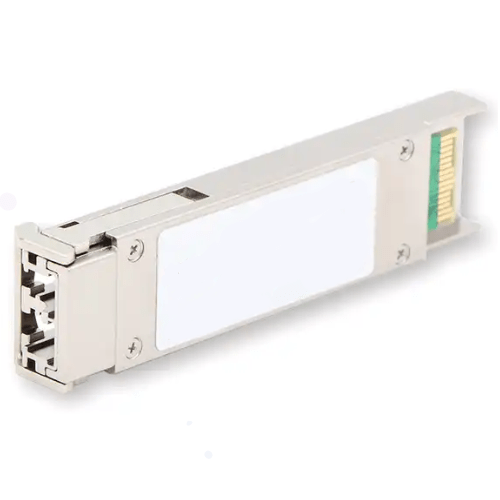

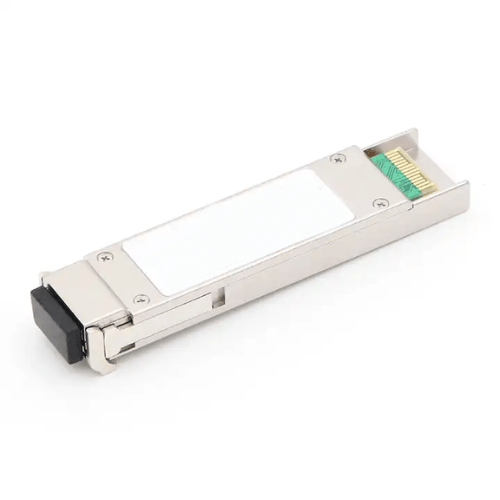

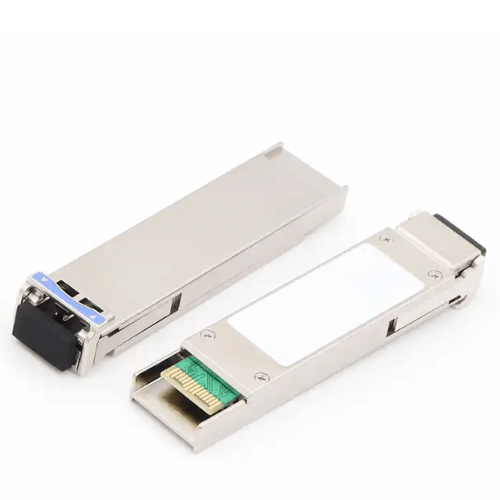

DWDM moduletunable 10 Gb/s XFP transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.35 Gb/s. The module complies with the 10 Gigabit small form factor pluggable (XFP) multisource agreement-MSA (INF-8077 i) and Tunable XFP for ITU Frequency Grid Applications (SFF-8477).
Features
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Monolithically integrated full C-band tunable transmitter
- 50 GHz ITU channel spacing with integrated wavelength locker
- C-band-tunable Laser and APD receiver
- Maximum link length of 24.85 mi (40 km)
- Full Duplex LC connector
- Hot-pluggable XFP footprint
- Supports Line-side and XFI loopback
- No Reference Clock required
- Built-in digital diagnostic functions
- Standard bail release mechanism
- Power dissipation <3.5W
- Case temperature range 32 °F to 158 °F (0 °C to 70 °C)
Technical Specification
| Property | Value |
| Type | Optical Fibers |
| Product name | dwdm XFP Transceiver |
| Application | FTTH FTTB FTTX Network |
| Wavelength | 15xx.xxnm |
| Compatible Brand | Juniper, Huawei, 3COM, Alcatel, etc |
| Distance | 24.85 mi (40 km) or 49.71 mi (80 km) |
| Category Rate | 10 G |
| Operating temperature | 32 °F to 158 °F (0 °C to 70 °C) |
| Working temperature | -5 °F to 60 °F (-20.5 °C to 15.55 °C) |
