Technical Specifications
| Customized support | OEM, ODM, OBM |

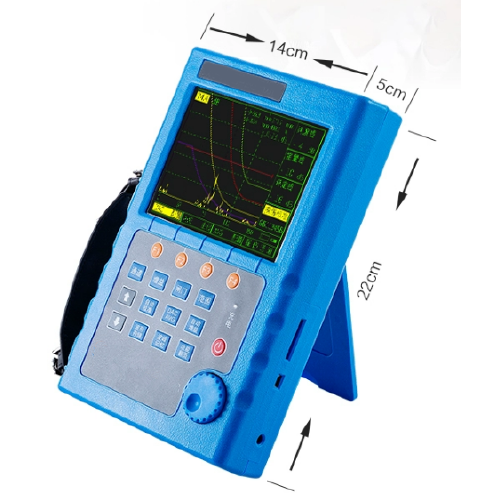

| Product parameters | 5.51 in x 1.96 in x 8.66 in (14 cm x 5 cm x 22 cm) |
| Scan range | 0 in to 236 in (0 mm to 6000mm steel section wave |
| Working frequency | 0.4 MHz to 20 MHz |
| Vertical linearity error | <=3% |
| Horizontal linearity error | <=0.1% |
| Gain | 110 dB |
| Sensitivity margin | >62 dB |
| Resolution | >40 dB |
| Dynamic range | >32 dB |
