Overview

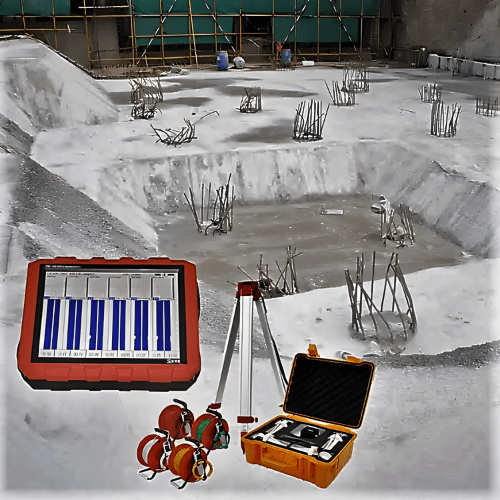

Emissions and Stack Ultrasonic Concrete Flaw Scanner is the perfect device for cross-hole acoustic wave transmission method. This instrument is specifically designed for testing the pile foundation integrity by using acoustic a wave transmission method and contains the unique multi-channel self-emission/self-receiving function. It also enables the concrete pile all-profile test with only one lift (3 or 4 acoustic testing pipes embedded), which makes the detection process more efficient and simpler.
Features
- Fast testing with adjustable gains and delays
- Display 6-profile information on one screen
- Multiple testing modes for accurate defect identification

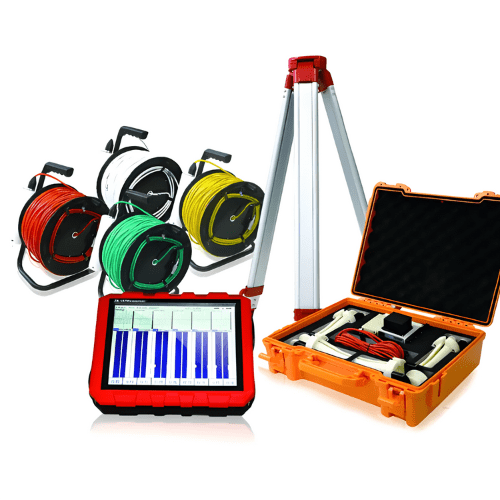

- Sturdy, waterproof carry case for durability and protection
Technical Specifications
| Control Mode | Built in A8 industrial control board |

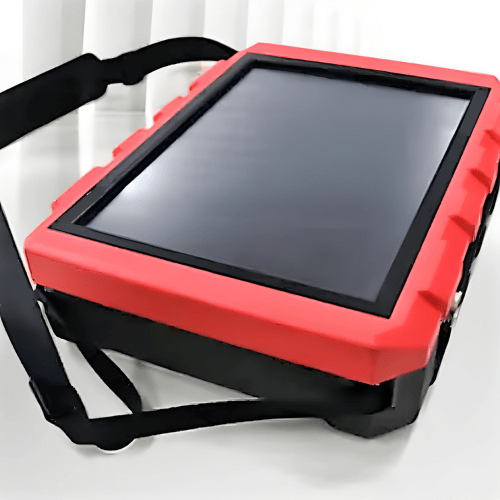

| Screen | 10.4 in high-definition LCD screen |
| Operating Method | Touch screen |
| Storage Method | Built-in electronic hard disk (≥4 GB) + U disk capacity |
| Acquisition Mode | Synchronous continuous mining |
| Sampling Interval | 0.05 μs to 1638.4 μs adjustable |
| Acoustic Transit Time Accuracy | 0.05 μs |
| Record Length | 512 to 4096 |
| Acoustic Transit Time Range | ±1677.7 ms |
| Emission Voltage(V) | 65 V, 250 V, 500 V, 1000 V adjustable |
| Amplifier Gain | 82 dB |
| Dynamic Range | 154 dB |
| Amplifier Gain Accuracy | 0.5 dB |
| Bandwidth (12dB) | 2 kHz to 500 kHz |
| Receiver Sensitivity | ≤10 μV |
| Channels Interference | ≤1/400 |
| Transmission Port | USB, MiniUsb, WiFi |
| Measuring Method | Horizontal test, inclined test, retest, finer increment test |
| Built-in | Lithium battery |
| Outside | 220 V AC/DC |
| Work Time(h) | > 8 |

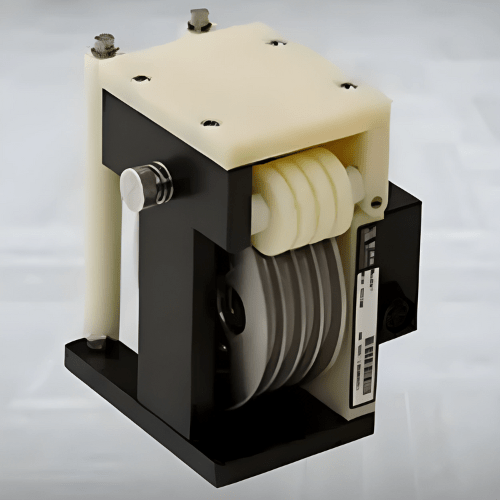

| Lifting Device Connection Mode | Wireless |
| Maximum Transmission Distance | ≥16.40 ft (≥5 m) |
| Work Time(h) | ≥20 |
| Power | Built-in lithium battery |
| Record Interval | 0.79 in to 9.84 in (2 cm to 25 cm) adjustable |
| Lifting Speed | >60 m/min (5 test points per meter) |
| Temperature | 14 °F to 104 °F (-10 ℃ to 40 ℃) |
| Humidity | <90% RH |
| Size | 10.63 in × 8.66 in × 2.95 in (270 mm × 220 mm × 75 mm) |
| Weight | 5.51 lb. (2.5 kg) |
