Overview

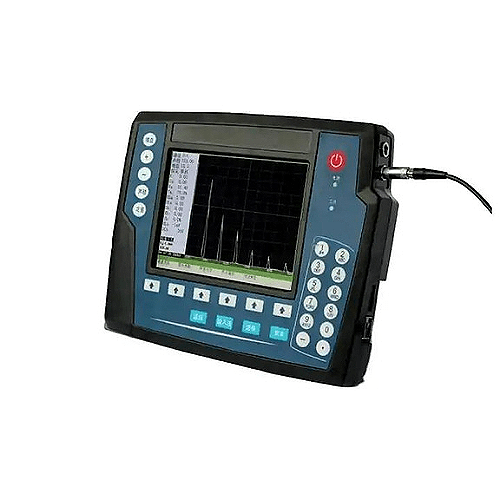

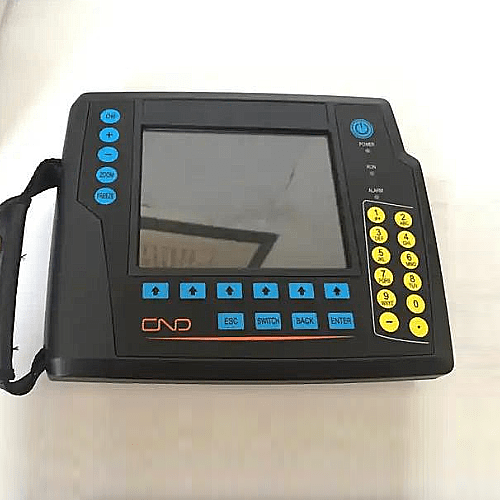

Emissions and Stack ultrasonic flaw detector is a portable industrial nondestructive testing equipment, it can quickly, easily, without damage, accurate inside the work piece a variety of defects (cracks, loose, pores, inclusions, etc.) detection, positioning, assessment and diagnosis. Widely used in the boiler, pressure vessel, aerospace, aviation, electricity, petroleum, chemical, offshore oil, pipeline, shipbuilding, automobile, machinery manufacturing, metallurgy, metal processing industry, steel structure, railway transportation, nuclear power, universities industry.
Features
- Suitable for various industries and detection demands, including forged pieces
- Embedded computer system and large scale field programmable IC
- Cine loop function for recording dynamic scanning processes
- Color TFT LCD for optimized reading, measuring, and visual comfort
- Surface wave tracking function for immersion detection
- Fast response time of the color TFT LCD for displaying fast scanning echoes
- Outstanding EMC design for increased field anti-interference capabilities
Technical Specifications
| Pulse Voltage | 25 V to 400 V, continuously |
| Damping | 400 Ohm to 80 Ohm |
| Frequency | 0.5 MHz to 20 MHz Broadband / narrowband optional |
| Gain | 0.0 dB to 120.0 dB Steps as 0.1 dB, 1.0 dB, 2.0 dB, 6.0 dB |
| Material Velocity | 1000 m/s to 15000 m/s continuously adjustable. |
| Display | 5.7 in high brightness TFT colour LCD |
| Pulse Shift | -20 μs to 3400 μs |
| Probe Zero Offset | 0 μs to 999.9 μs |
| Pulse Repetition Frequency | 25 Hz to 1000 Hz, auto and manual adjustment modes |
| Vertical Linearity Accuracy | ≤ 2% |
| Horizontal Linearity Accuracy | ≤ 0.1% |
| Surplus Sensitivity | ≥ 65 dB |
| Resolutions | ≥ 45 dB |
| Dynamic Range | ≥ 32 dB |
| Electric Noise Level | < 10% |
| Power Supply | Large capacity Li Battery with More than 6 hrs |
| Relative Humidity | 20% to 95 %RH |
| Environmental Temperature | 4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Size | 18.89 in x 15.35 in x 6.29 in (48 cm x 39 cm x 16 cm) |
| Weight | 2.20 Ib (1 Kg) with battery |
