Overview

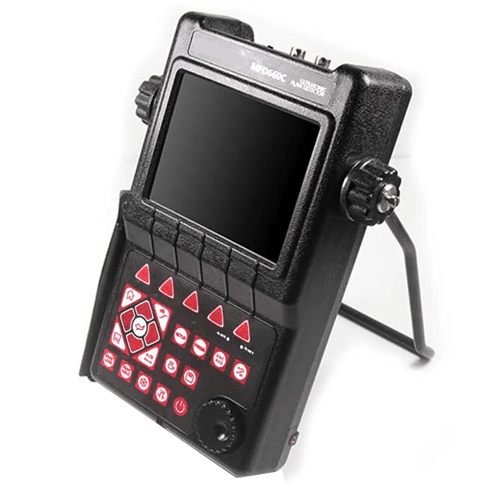

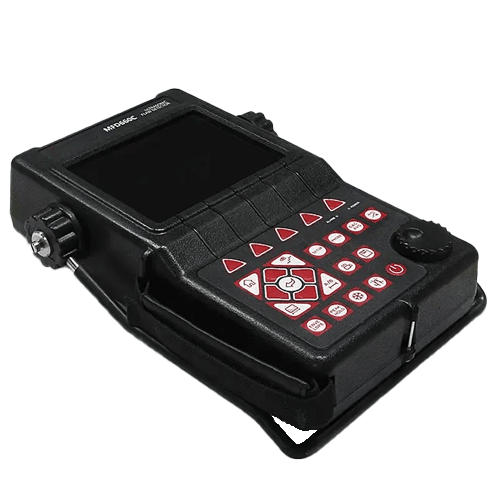

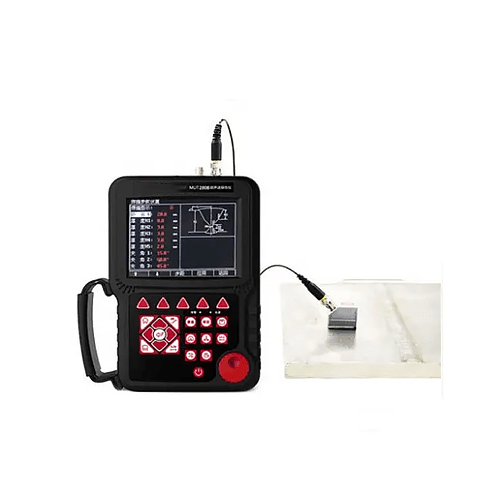

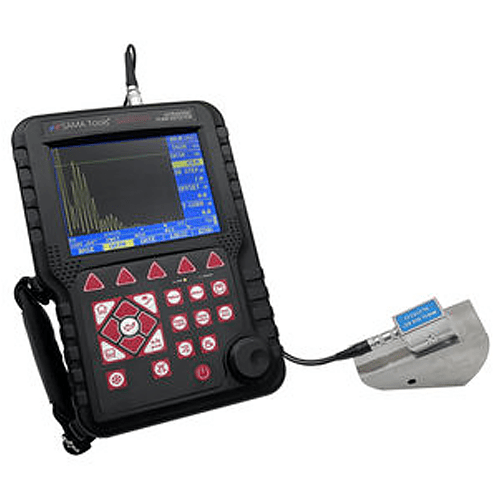

Emissions and Stack ultrasonic flaw detector is advanced type, can quickly, easily and without damage, accurately detect, locate, evaluate and diagnose various defects inside the workpiece such as cracks, welds, pores, sand holes, inclusions, folding, etc. It has been applied for electric power, petrochemical, boiler and pressure vessel, steel structure, military, aerospace, railway transportation, automobile, machinery and other fields. It is an essential instrument for the nondestructive testing industry.
Technical Specifications
| Material Sound Speed | 1000 m/s to 15000 m/s |
| Gain Adjustment | 0 dB to 120 dB |
| Flaw Detection Sensitivity Margin | ≥ 62 dB |
| Dynamic Range | ≥ 32 dB |
| Flaw Detection Channel | 300 |
| Battery | Lithium (Li) Battery 5000 mAh |
| Power Adapter | Enter 100 V to 240 V / 50 Hz to 60 Hz Output 9 V / 1.5 A |
| Working Humidity | 20 % RH to 90 % RH |
| Interface Type | BNC |
| Working Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Measuring Range | Scan range: 0 in to 393.7 in (0 mm to 10000 mm) |
| Dimensions | 8.66 in x 5.51 in x 1.97 in (220 mm x 140 mm x 50 mm) |
| Weight | 2.20 Ib (1.0 kg) |
