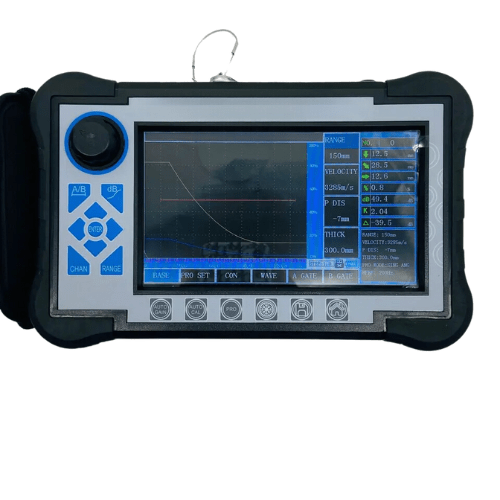

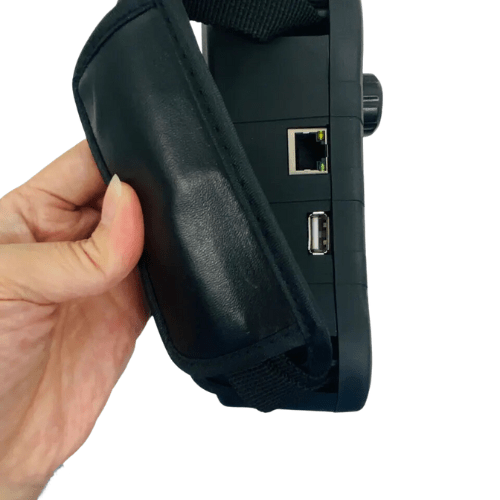

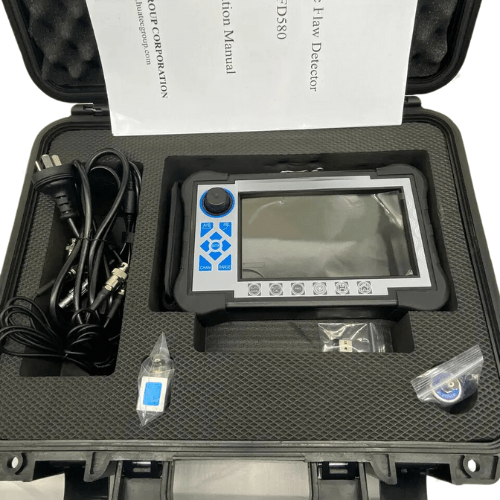

Technical Specifications
| Display | 7 in (127 mm) TFT color screen,
800-pixel x 480-pixel resolution |
| Operation mode | Button, Rotary, Touch Screen |
| Power supply | Lithium Ion Battery |
| Battery capacity | 5.0 mAh |
| Power voltage | 12 V |
| Power quantity | 1 |
| Working time | ≥8 hrs |
| Adapter input | DC 100 V to 240 V 50 Hz / 60 Hz |
| Adapter output | AC 12 V |
| Adapter power | 36 W |
| Data storage | SD card (16 G) |
| Alarm | 1 |
| Working Temperature | 14 °F to 113 °F
(-10 ℃ to 45 ℃) |
| Storage Temperature | -4 °F to 140 °F
(-20 ℃ to 60 ℃) |

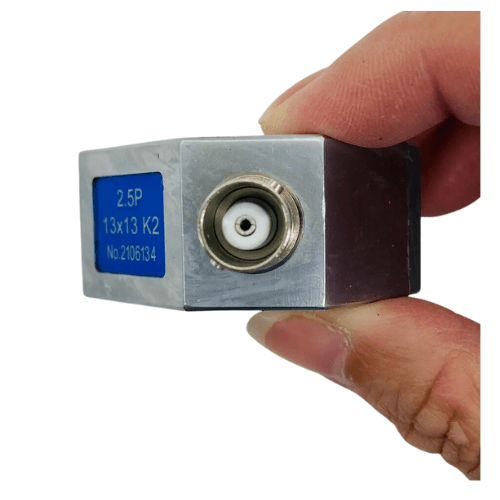

| IP Grade | IP 65 |
| Probe Connector type | LEMO 00 |
| Channel Type | Single channel |
| Channel Num | 500 group (able to be scaled) |
| Pulse Type | Negative sharp wave |
| Transmit Voltage | 50 V to 350 V, step in 50 V |
| Damping | 560 Ω |
| Gain | 0 dB to 110 dB, step: 0.5 dB / 2 dB / 6 dB / 12 dB |
| Gain Fine Adjustment | -4 to +4 |
| Surface compensation | All Gain Range |
| Working Frequency | 0.5 MHz to 20 MHz |
| Probe Type | Single, Dual, Through, Immersion type |
| Filter | Three optional:
1 MHz to 4 MHz / 0.5 MHz to 10 MHz / 2 MHz to 20 MHz |
| Detection Mode | Negative / Positive / Two-way / RF |
| Reject | 0% to 80%, step 1% |
| Testing Range | 0 in to 590.55 in (0 mm to 15000 mm), Minimum display range:
0.59 in (15 mm) (in steel) |
| Material Velocity | 3937.01 in/s to 787401.57 in/s
(100 m/s to 20000 m/s) |
| Pulse displacement | 0.39 in to 39.37 in
(-10 mm to 1000 mm) |
| P DELAY | 0 us to 200 us |
| X-VAL | 0 in to 3.94 in (0 mm to 100 mm) |
| Guide | Weld, Sheet, Forging inspection |
| Testing Point | Peak / X-val / J-val |
| Measurement | Gate: Amplitude, Amplitude dB value, Range, Horizontal distance, Vertical distance, The difference value between A and B Gate
Cursor: 2 cross cursors, can test the horizontal and vertical distance, and the distance between cursors (under B scan function) |
| Gate | Gate start: all range
Gate width: all range Gate level: 10% to 90%, step: 1% |
| Curve | DAC, maximum six curves, meet to NB/T 47013, GB/T 11345, GB/T 29712, and other standards
TCG, maximum six curves AVG |
| Other functions | Full screen, cursor switch(range/Height/Horizon), single/continuous auto gain (10% to 100%, step 10%), echo compare, echo full, peak envelope, peak memory, fast scan, outside mode, screenshot
Peak freeze / Crack depth / Gate expansion // curved surface modification / B scan /Flat weld simulation / video |
| Alarm | Sound and light alarm |
| Sensitivity Leavings | ≥ 65 dB (7.87 in (200 mm) ,2 FH, 2.5 P 20) |
| Horizontal linearity error | ≤ 0.3% |
| Vertical linearity error | ≤ 3% |
| Amplitude linearity error | ≤ ±2% |
| Attenuator accuracy | 20 dB ±1 dB |
| Dynamic range | ≥ 32 dB |
| Distant resolution | ≥ 26 dB |
| Noise Level | < 40 × 10-9 V/ |
| Dimension | 9.65 in x 6.10 in x 2.17 in
(245 mm x 155 mm x 55 mm) |
| Weight | 2.60 lb (1.18 kg) (included battery) |
