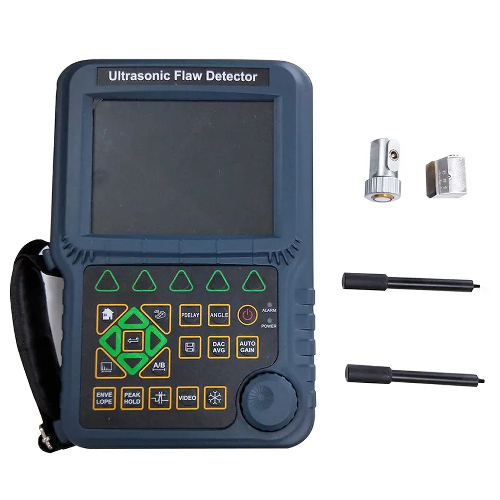

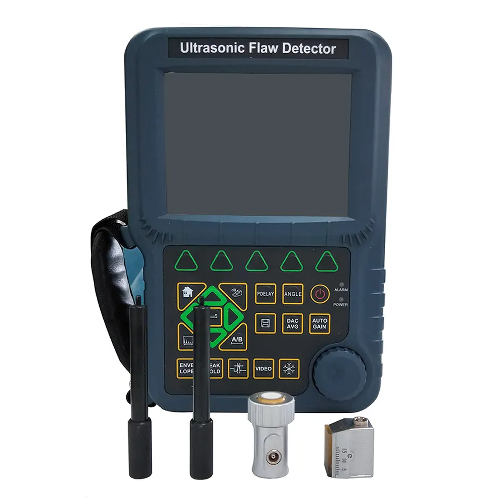

Name: Emissions and Stack Ultrasonic Flaw Detector -
SKU: EMSSCD-254

Features

IWIN to U600 Ultrasonic flaw detector can quickly, non to destructively and accurately detect various defects (cracks, inclusions, blowhole, etc.) inside the workpiece.
The product is unique in design, easy to operate and durable.
It adopts all to Chinese true color liquid crystal display.
Different color schemes can be selected according to the environment.
The brightness of the liquid crystal can be adjusted under strong outdoor light.
Master to slave menu design, with digital shuttle wheel, easy to operate, leading technology.
It is widely used in aerospace, railway transportation, building steel structure, boiler pressure vessel and other fields.
It is a necessary professional precision instrument for defect detection, quality control, in service safety monitoring, and life evaluation in railway, shipbuilding, metallurgy, chemical industry, petroleum, and other industries.

Technical Specifications

Pulse Width	Square wave width 30 ns to 000 ns adjustable, step 0.1 ns
Detection range	0 in x 551.18 in (0 mm x 14000 mm (Steel longitudinal wave)mm
Pulse shift	-1.77 in x 39.37 in (-45 mm x1000 mm)(steel longitudinal wave)mm
Material sound velocity	300 m/s to 15000 m/s
Equivalent input noise	＜80 x 10 to 9V/ Hz
Pulse repetition frequency	20 Hz to 1000 Hz ，Stepping 25 V
Pulse voltage	25 V to 400 V can adjust, step 25 V
AWS D1.1/D1.5	The AWS D 1.1/ D 1.5 of the American Welding Association (AWS) calculates the weld level of steel structures and bridges
Working voltage	12 V (Battery, DC)
Storage	Storage card
Probe damping	100 Ω, 200 Ω, 400 Ω optional
Real time sampling of hardware	High resolution 10-bit AD converter with sampling speed of 160 MHz and high waveform fidelity
Detection method	Positive half wave, negative half wave, full wave, radio frequency detection
Communication Interface	USB 2.0 high speed communication transmission interface
Ambient temperature and humidity	Temperature: 14 °F to 122 °F (-10 °C to 50 °C),Humidity: 20% RH to 95% RH
Appearance size	7.09 in x 5.12 in x 1.57 in (180 mm x 130 mm x 40 mm)
