Overview

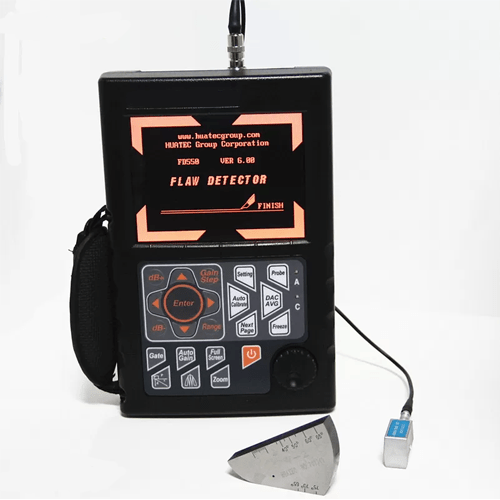

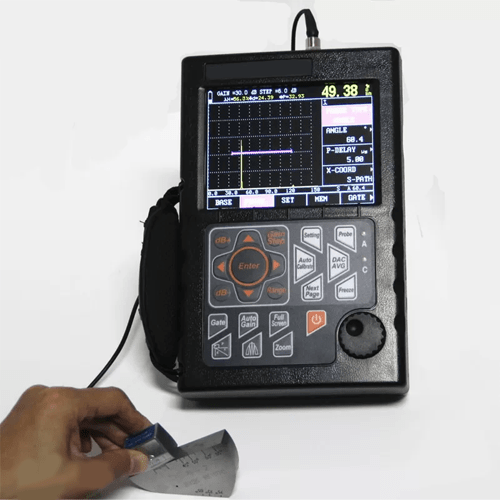

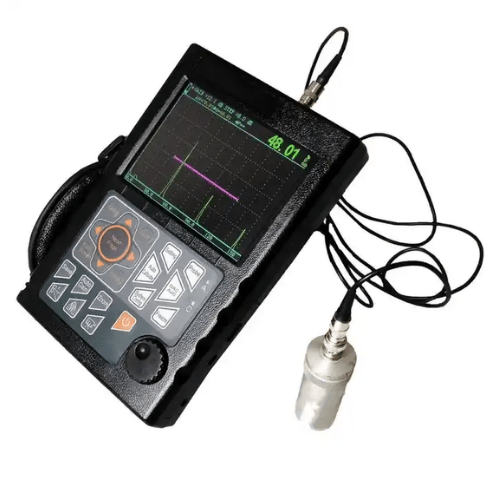

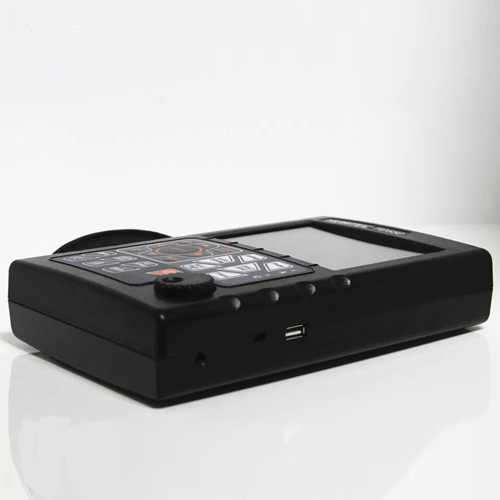

Emissions and Stack ultrasonic flaw detector ,whose performance has a further leap. It adopt high resolution,imported color LCD screen, so the instrument show clarity and stability .It is easy to understand ,and it is simple to operate.
Features
- Automated calibration,Automated gain
- DAC,AVG,TCG,B scan,AWS
- High-speed capture and very low noise
- Solid metal housing
- high contrast viewing of the waveform from bright
- Powerful pc software and reports can be export to excel
Technical Specification
| Material Velocity | 1000 m/s to 9999 m/s |
| gain | 100 dB |
| Frequency range | 0.5 MHz to 15 MHz |
| Waveform memory | 300 |
| Working hours | 8 hrs |
| Pulse amplitude | Low (300 V), medium (500 V), high (700 V) grading options |
| Pulse Width | Continuous adjustment in the range of (0.1 μs to 0.5 μs) to match probes of different frequencies |
| Probe damping | 100 Ω, 200 Ω, 400 Ω optional |
| Measuring Range | 0 in to 9.87 in (0 mm to 6000 mm) |
