Features

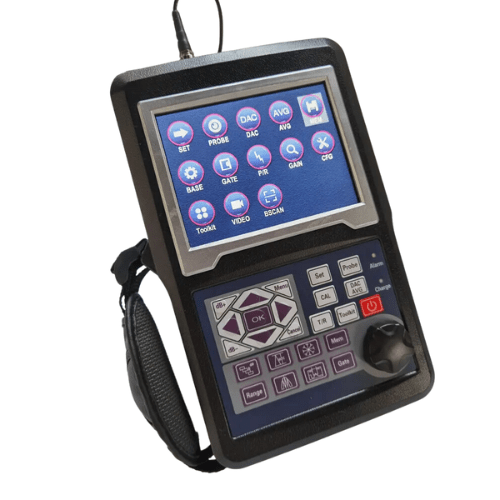

- User friendly dialog interactive helps operations like Calibration, making curves, etc

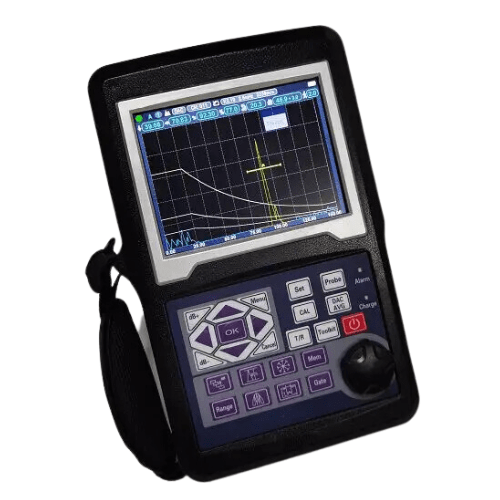

- All tools you need, such as DAC, AVG, TCG AWS, etc
- Pulse Repetition Frequency with 10 Hz to 2000 Hz precise adjust, high speed scan, no miss out
- High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions
- 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws
- Can use probe frequency 20 M perfectly

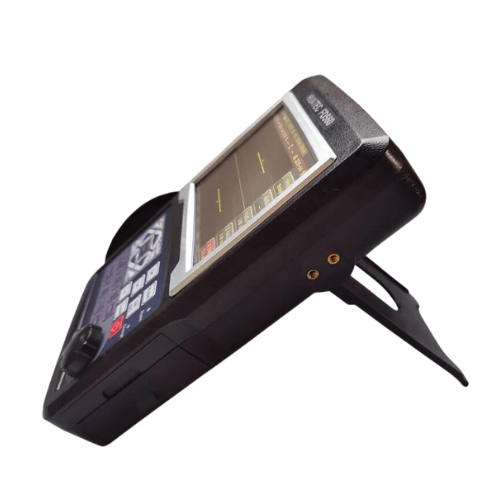

- Protective rubber casing and damping support makes it stands in any angle
- Battery lasts 15 hrs for one charge, as each battery has own charging control so with two batteries it can work around the clock
- 500 independence setups, any criterion can be input freely, we can work in the scene without test block
- Big memory of 1000 A graph
- Internal rechargeable Li-ion battery pack rated 7.2 V at 8000 mAh
- 4 hrs typical recharge time
Technical Specifications
| Range | 0 in to 393.7 in (0 mm to 10000 mm), at steel velocity |
| Material Velocity | 3937.01 in/s to 787401.57 in/s (100 m/s to 20000 m/s) |
| Pulse Repetition Frequency | 10 Hz to 2000 Hz |
| Dynamic range | ≥38 dB |
| Linearity | Horizontal: +/-0.2 %,
Vertical: 2.0 % (Horizontal: +/-0.2 % FSW Vertical: 0.25 % FSH) |
| Resolving Power | >40 dB (5P 14) |
| Sensitivity Leavings | >68 dB |
| Reject (suppression) | 0% to 80% full screen height |
| Test Modes | Pulse echo, dual element and thru-transmission |
| Probe Types | Single Straight, Single Angle, Daul Straight, Daul Angle, Through, Creeping, Surface |
| Gate Monitors | Two independent gates controllable over entire sweep range |
| Units | Inch or millimeter |
| Power Requirements | AC Mains 100 V to 240 V AC, 50 Hz to 60 Hz |
| Display Delay | -20 µs to 3400 µs |
| Probe Delay / Zero Offset | 0 µs to 99.99 µs |
| Operating Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Storage Temperature | -22 °F to 122 °F (-30 ℃ to 50 ℃) |
| Pulse Energy | 70 V, 100 V, 200 V, 300 V, 400 V, 500 V selectable |
| Rectification | Positive half wave, negative half wave, full wave, RF System |
| Bandwidth (amplifier bandpass) | 0.2 MHz to 25 MHz |
| Gate Monitors | Two independent gates controllable over entire sweep range |
| Sensitivity | 120 dB max in selectable resolution 0.1 dB, 1.0 dB, 2.0 dB, 6.0 dB |

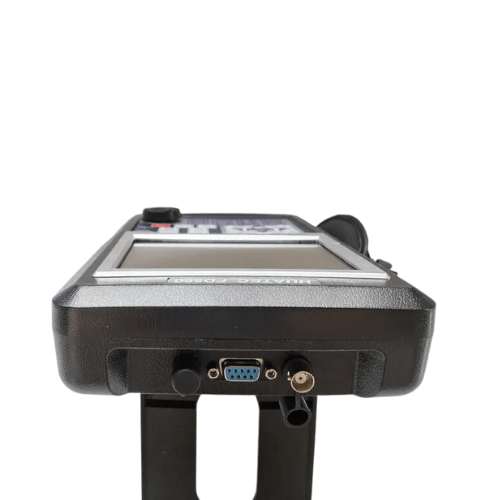

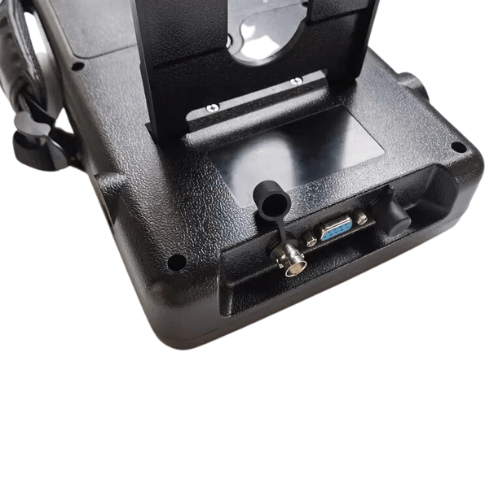

| Transducer Connections | BNC or LEMO |
| H×W×D | 9.84 in x 6.50 in x 2.17 in
(250 mm × 165 mm × 55 mm) |
| Weight | 2.65 lb (1.2 kg) |
