Overview

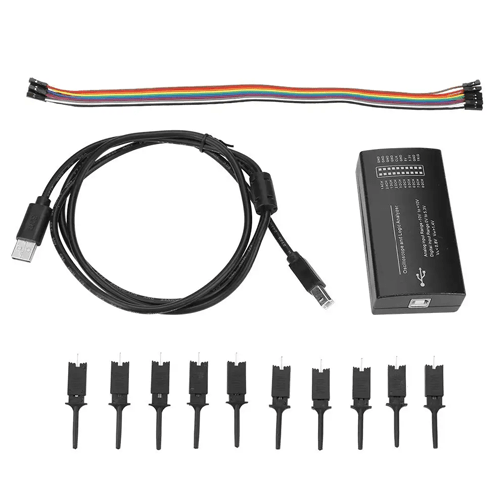

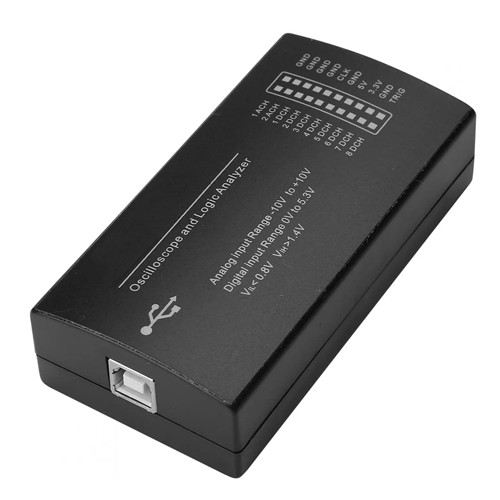

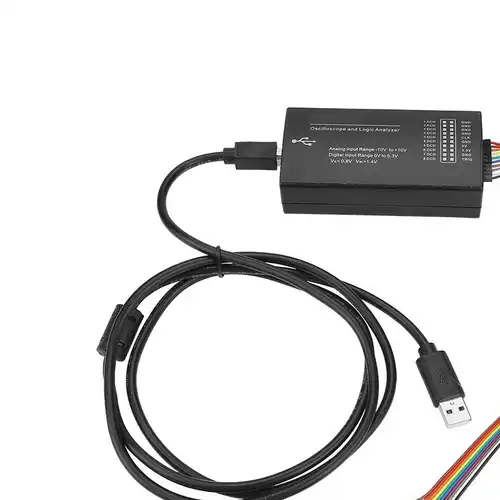

Emissions And Stack virtual oscilloscope logic is a 8-channel logic Analyzer, Data Logger Dual channel voltmeter, Mixed signal oscilloscopes and logic Analyzer Frequency meter, Remote controller PWM controller, Frequency generator I 2 C controller, Pulse or edge counter 8 digital channel + 1 Analog channel logic Analyzer, support for multiple protocols.
Features
- Dual input oscilloscope (single, 16Msps, 3MHz bandwidth)
- 8-channel logic analyzer, Data Logger
- Dual channel voltmeter, Mixed signal oscilloscopes and logic analyzer
- Frequency meter, Remote controller
- PWM controller, Frequency generator
Technical Specifications
| Number of input channels | 2 Ch |
| Sampling channel | 1 Ch |
| The maximum sampling frequency | 16 MHz |
| The maximum Analog bandwidth | 3 MHz |
| Input voltage range | -10 V to 10 V |
| Sensitivity | 78 mV |
| Maximum vertical resolution | 256 level |
| Number of channels | 8 |
| Input voltage | 0 V to 5.3 V |
| Input low level | < 0.8 V |
| Input high level | > 1.4 V |
| Supported protocols | Serial Peripheral Interface, IIC, UART, SM Bus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2 |
| USB parameters | USB 2.0 high-speed 480 Mbps |

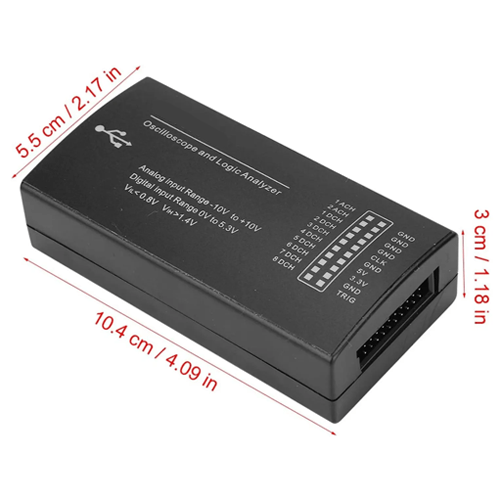

| Size | 4.1 in x 2.2 in x 1.2 in) (104 mm × 55mm × 30 mm) |
| Weight | Approx. 0.5 lb (218 g) or (7.7 oz) |
