Overview

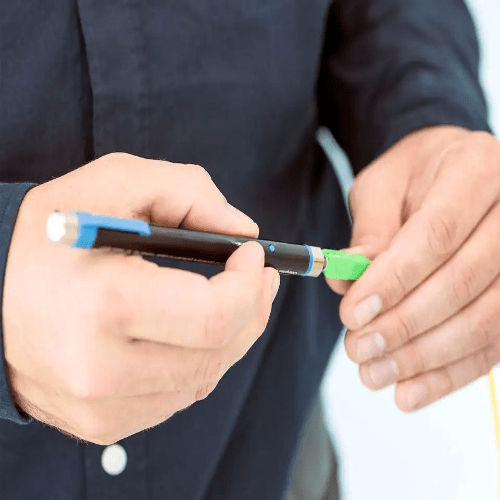

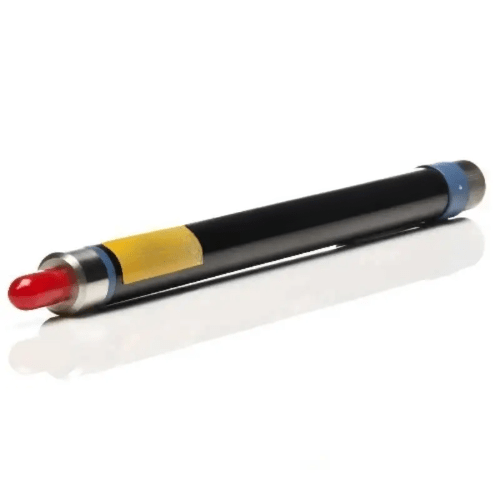

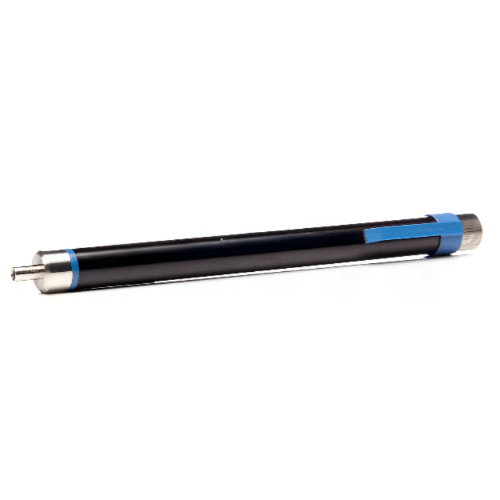

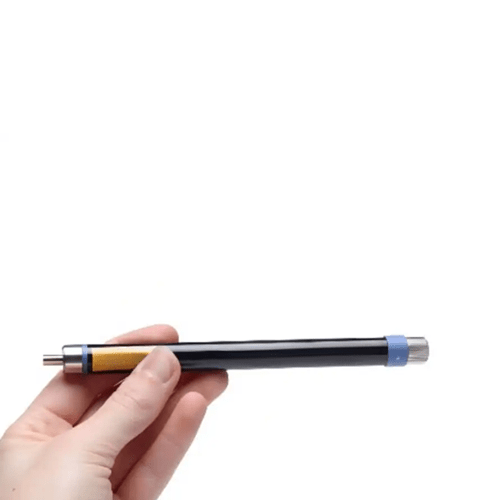

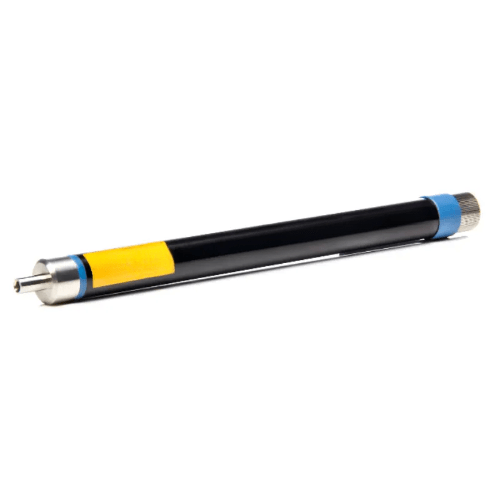

Emissions And Stack Visual Fault Locator is the easiest way to identify fibers from end to end and locate polished connector end faces. Its red laser shines through most yellow-jacketed fibers to help you pinpoint breaks, bends, faulty connectors, splices and other causes of signal loss. It has a reach of up to 3.10 mi (5 km). The convenient locates faults visually by creating a bright red glow at the exact location of the fault on single mode or multimode fibers.
Features
- Bright red laser at 655 nm
- Pulsed and CW operation
- 40 hrs of operation (typical)
- Standard AAA alkaline batteries
- Pocket size pen style design
- 0.09 in (2.5 mm) universal connector
Technical Specifications
| Operation Hz | 2 Hz to 3 Hz |
| Wavelength nm | 650 nm to 660 nm |
| Emitter Type | Laser |
| Power Output mW | 0.6 mW |
| Maximum power output | <1 |
| Distance range km | 3.10 mi (5 km) |
| Operation mode | Pulsed and CW |
| Power Supply | 2 AAA alkaline batteries |
| Laser class | 2 M |
| Battery Life Pulsed | 40 hrs |
| Length | 6.1 in (157 mm) |
| Maximum Diameter | 0.47 in (12 mm) |
| Temperature | 14 °F to 113 °F (-10 ℃ to 45 ℃)-22 °F to 140 °F (-30 ℃ to 60 ℃) |
| Weight | 0.15 lb (70 g) |
