Overview

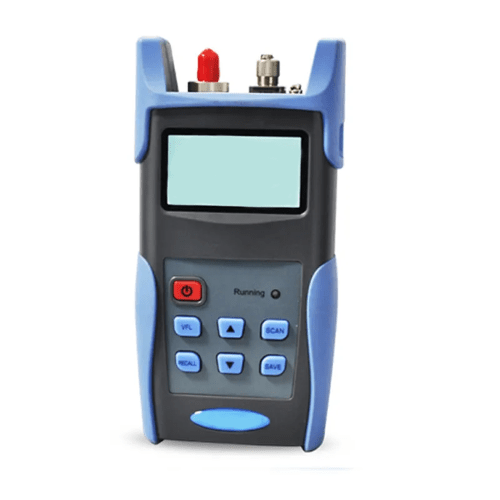

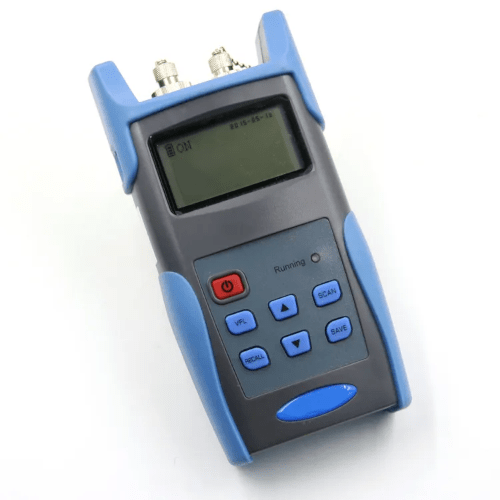

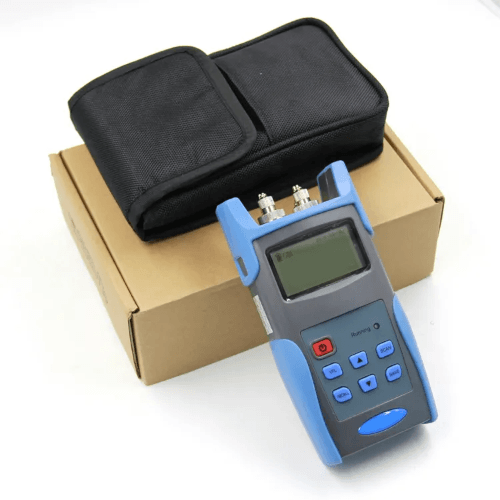

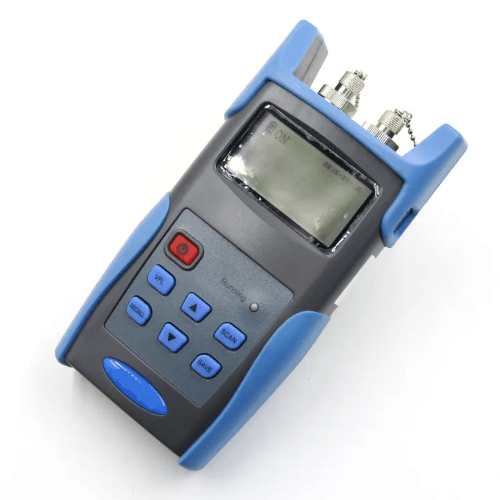

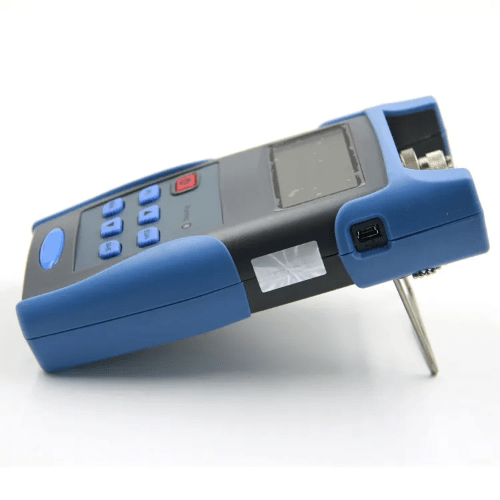

Emissions And Stack Visual Fault Locator is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. It can detect fiber fault location more accurate and quick, and designed for field use. The fiber ranger is an economical tester instead of in the test and maintenance of fiber network.
Features
- Easy to identify the faults location
- Analysis reflection events
- Attenuation events automatically
- Build in visual fault locator function
- Automatic Pulse Width Control design
- Ensure a convenient operation
- Up to 2500 measurement
- Results can be stored in the unit
Technical Specifications
| Operating Wavelength | 1550 ± 20 |
| Fiber Type | 9 um or 125 um |

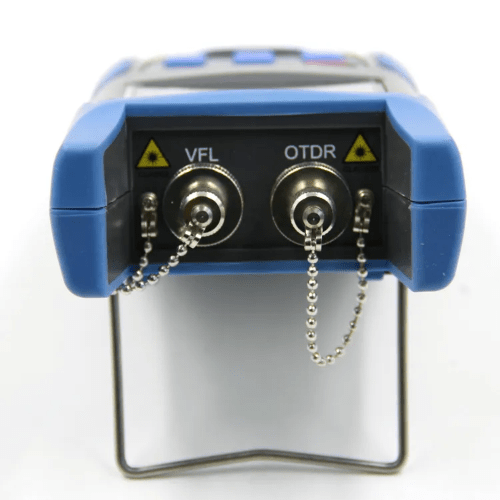

| Optical Connector Type | FC or PC |
| Detector Type | InGaAs APD |
| Pulse Width | Auto adjustment |
| Max. Distance | 37.28 mi (60 km) |
| Distance Accuracy (Reflection Event) | ± (9.84 ft (3 m) + 2 x 10^-4 x distance) |
| Ref lection Event Dead Zone | 49.2 ft (15 m) |
| Power Supply | AA,3 pcs |
| Battery Operating Time | >2500 |
| Auto Power-off time | 10 |
| VFL output power | >1 mW |
| Data Storage Capacity | 2000 |
| Working Temperature | 23 °F to 104 °F (-5 ℃ to 40 ℃) |
| Storage Temperature | 14 °F to 158 °F (-10 ℃ to 70 ℃) |
| Dimensions | 6.88 in x 9.54 in x 1.75 in (175 mm x 90 mm x 44.5 mm) |
| Weight | 0.61 lb (278 g) |
