Overview

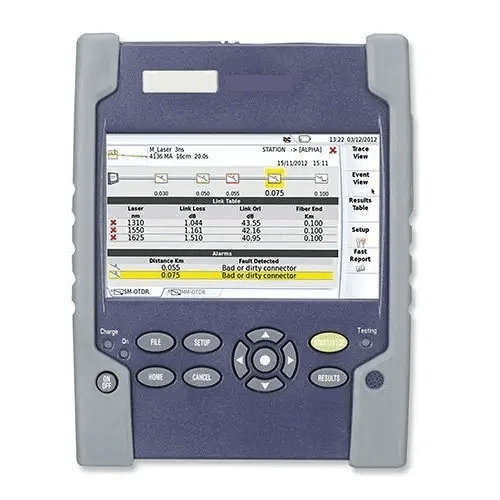

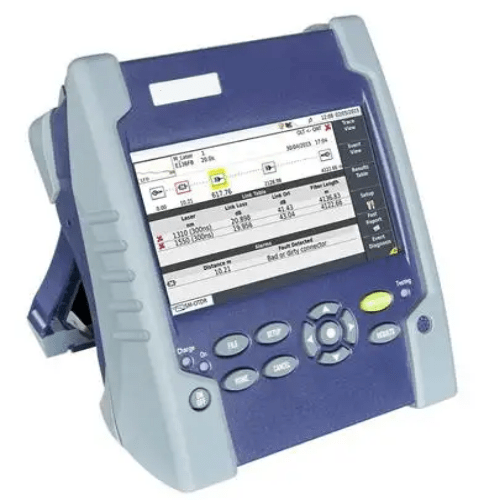

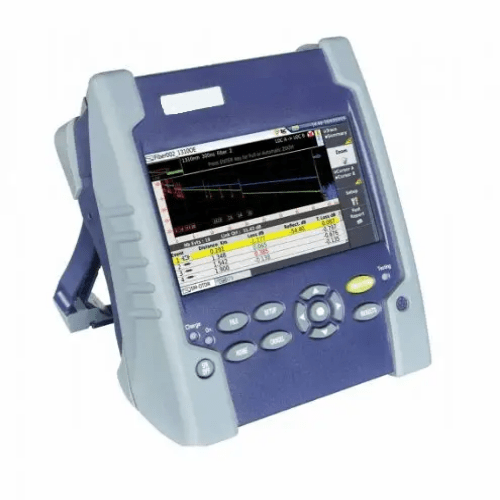

Emissions And Stack Visual Fault Locator optimizes field testing of metro and access networks with a tailored OTDR interface and automatic analysis that any technician can understand. With Smart OTDR, generic or user defined setup configurations eliminate setup errors and maintain results consistency. One touch operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere.
Features
- Single or dual or tri wavelength versions
- 1310 nm, 1550 nm, and in service 1625 nm
- Light, compact
- Hands free design
- Includes 5 in (12.7 cm)
- High visibility outdoor touchscreen
- Integrated CW light source
- PON optimized
- Test through a 1×128 splitter
- Automated fiber inspection
- Macro bend detection
- Pass fail analysis software
- 3 G or 4 G connectivity via USB
- Bluetooth or Wi-Fi options
- All day battery life
Technical Specifications
| Display | 5 in (12.7 cm) capacitive color touch screen |
| Display resolution | 800 pixels x 480 pixels W VGA |
| Interface | 2x USB 2.0 ports, 1x mini USB 2.0 port, built in Bluetooth and WiFi (optional, dongles also available) |
| Storage | 10,000 OTDR traces typical |
| Battery | Rechargeable Lithium polymer battery, up to 20 hrs of operation |
| Power supply | AC or DC adapter, input 100 V to 250 V AC, 50 Hz to 60 Hz; 2.5 A max, output 12 V DC, 25 W |
| Electrical safety | EN60950 compliant |
| Temperature Operating storage | -4 °F to 122 °F (–20 °C to +50 °C)-4 °F to 140 °F (–20 °C to +60 °C) |
| Humidity | 95% |
| Size | 6.9 in x 5.4 in x 2.24 in (175 mm x 138 mm x 57 mm) |
| Weight (battery included) | Approx. 1.98 lb (900 g) |
