Overview

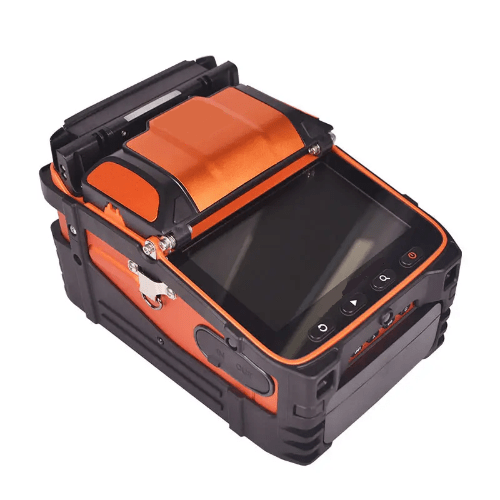

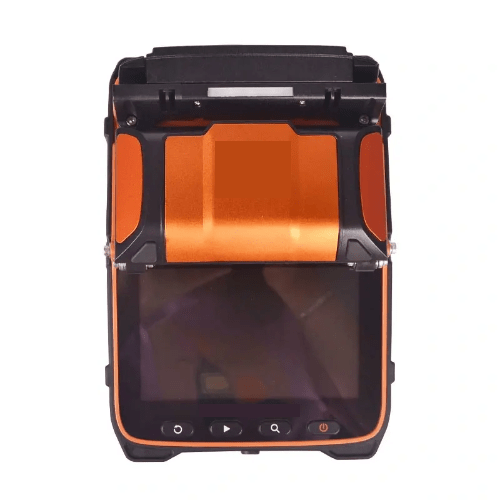

Emissions And Stack Visual Fault Locator is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects.
Features
- Support multi languages
- Up to 10 languages
- Uses industrial quad core CPU
- Fast response
- 5 in (12.7 cm) 800 pixels x 480 pixels
- High resolution screen
- Up to 300 times focus magnification
- 5 sec speed core alignment splicing,
- 15 sec heating

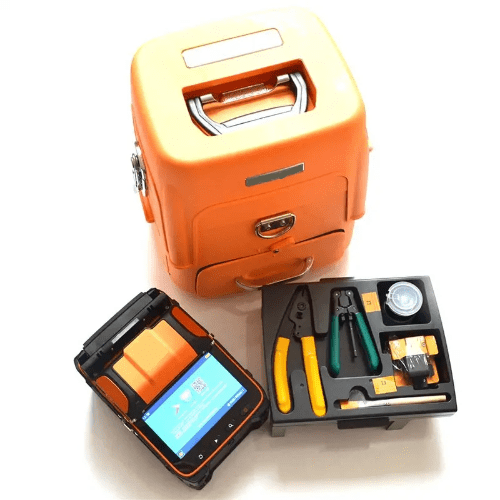

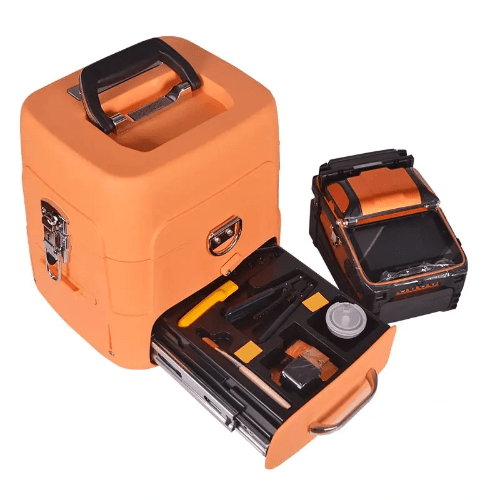

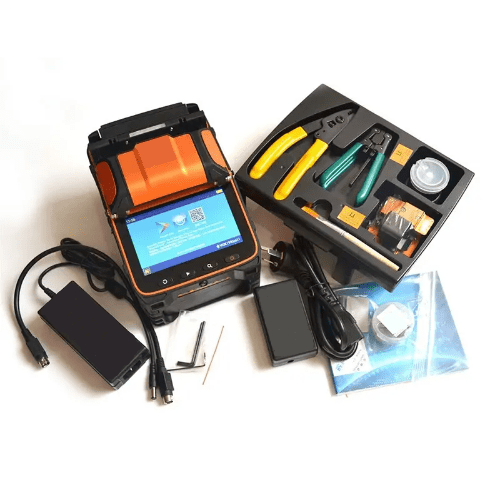

- toolbox is small
- Exquisite, durable
- Unique bench design
Technical Specifications
| Splicing time | 5 S |
| Heating time | 15 S |
| Heating mode | Automatic heating (Preheating) |
| Focus mode | Six motors Auto focus |
| Applicable Rbers | SM (G.652 & G.657}, MM (G.651), DS (G.657), NZDS (G.655) |
| Splice Loss | 0.025 dB (SM),0.0I dB (MM) 0.04 dB (DS or NZDS) |
| Control technology | Real time control and calibration of fusion ARC |
| Return loss | Better than 60 DB |
| Fiber diameter | Cladding Diameter: 80 pm to 150 pm Coating Diameter: 100 pm to 1000 pm |
| Fiber Cleave Length | Coating less than 250 pm:0.31 in to 0.62 in (8 mm to 16 mm) Coating less than 250 pm to 1000 pm: 0.62 in (16 mm) |
| Built-in lighting | easy for night operation |
| Tension Test | Standard 2 N |
| Fiber holders | 3 in (7.62 cm) fiber holder, SM, MM, bare fiber, pigtail, rubber insulated, multi fiber cable |
| Magnification | 3001 or X or Y view, 150 for X or Y view |

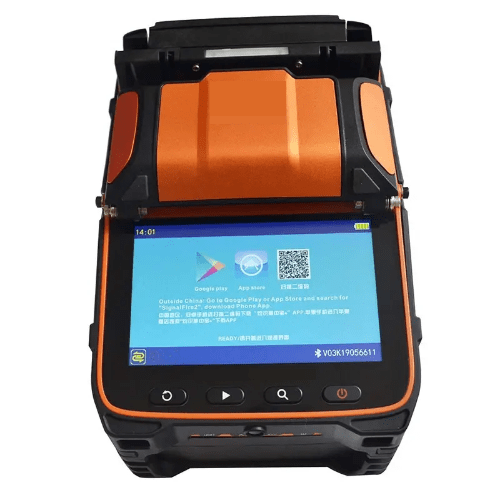

| Screen | 5 in (12.7 cm) TFT color display |
| Splicing Mode | Normal or high precision splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
| Built in battery | 780 mA high capacity lithium battery, charging time <3.5 hrs, continuous splicing and heating about 260 times |
| Power supply | input AC 100 V to 240 V 50 Hz or 60 HZ, output DC 13.5 V or 4 A, the current power mode can be identified, real time detection of battery power |
| Operating Conditions | Temperature 5 °F to 122 °F (-15 °C to +50 °C), humidity: <95% RH (no condensation) Working altitude: 0 mi to 3.10 mi (0 m to 5000 m). Resist max. wind speed: <49.2 ft (15 m) or s |
| Shrinkable tube | 60 nm 1.57 in (40 mm) |
| Visual Fault Locator | Power:15 mw,2 Hz Fashing and Constantly Bright Mode |
| Optical Power Meter | Wavelength:850 nm,1300 nm,1310 nm. 1490 nm. 1550 nm,1625 nm Measuring Range: -70 dB to +6dB Absolute Error:<0.3 db (-50 dbm to +3 dbm Range) |
