Overview

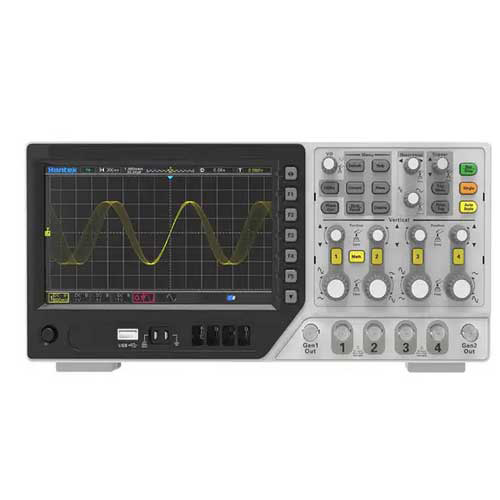

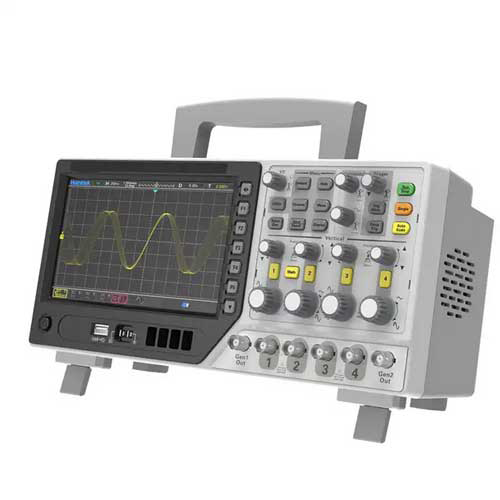

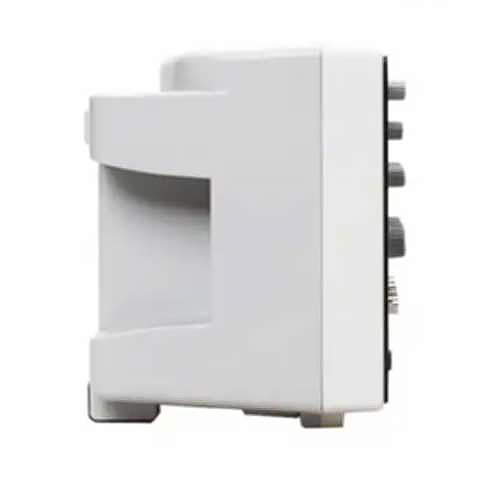

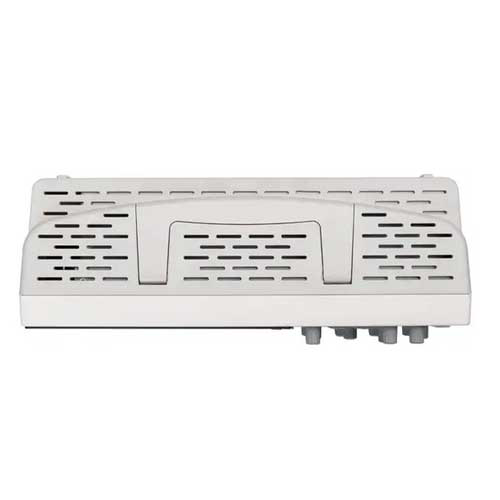

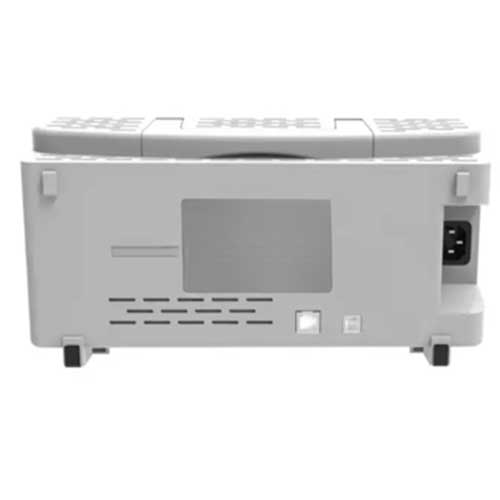

Emissions And Stack Waveform Generator is versatile, logic analyzer, waveform generator, and more. Notable features: 400,000 wfms or s capture, 80,000 segmented acquisition, 1 GSa or s real-time sampling, 16 trigger functions. It also has FFT spectral analysis. Compliant with LXI CORE standards for efficient test system integration.
Features
- 6 in 1: Oscilloscope, Logic Analyzer, Waveform Gen, DVM, Protocol Analyzer, FFT
- High Capture Rate: 400,000 wfms or s (Quick Mode)
- Segmented Acquisition: Up to 80,000 sections
- Versatile Triggers: 16 types, 5 protocol triggers
- Real-Time Sampling: 1 GSa or s, 64 Mpts memory
- 13 waveforms, 200 M sample rate
- Broad Bandwidth: 80 MHz to 200 MHz
- 7 in (17.78 cm) Capacitive Touch Screen, Remote Control
Technical specification
| Display Type | 7 in (17.78 cm) TFT diagonal liquid crystal |
| Display Resolution | 800 (horizontal) x 480 (vertical) pixels |
| Display Colour | 16 million colours (24 bits true colour) |
| Persistence Time | minimum,1 s,5 s,10 s,30 s, infinite |
| Display Type | dot, vector |
| Standard Interface | USB Host, USB Device, LAN, EDU signal WIFI, Aux (trigger output or Pass-fail) only EDU with this interface |
| Output Voltage, Typical | about 2 Vpp input ≥1 MΩ load |
| Frequency, Typical | 1 kHz |
| Power Supply | 100 V to 120 V ACRMS (±10%), 45 Hz to 440 Hz, CATⅡ 120 V to 240 V ACRMS (±10%), 45 Hz to 66 Hz, CATⅡ |
| Power Consumption | <30 W |
| Fuse | T, 3.15 A, 250 V, 0.19 in x 0.78 in (4.82 mm x 19.81 mm) |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -40 °F to 159.8 °F (-40 °C to 71 °C) |
| Humidity | ≤104 °F (≤40 °C): ≤90% relative humidity 106 °F to 122 °F (41 °C to 50 °C): ≤60% relative humidity |
| Cooling Method | convection |
| Size | 12.51 in x 5.51 in x 5.90 in (318 mm x 140 mm x 150 mm) |
| Weight | 6.39 lb (2.9 kg) |
