Technical Specifications

Display	7-inch TFT color screen, 800 x 480 resolution
Operation mode	Button, Rotary, Touch Screen
Material Velocity	3,937.01 in/s to 787,401.57 in/s(100 m/s to 20000 m/s)
P DELAY	0 us to 200 us
X-VAL	0 in to 3.94 in (0 mm to 100 mm)
Working Frequency	0.5 MHz to 20 MHz
Gain	0 dB to 110 dB
Reject	0% to 80%
Probe Type	Single, Dual, Through, Immersion type

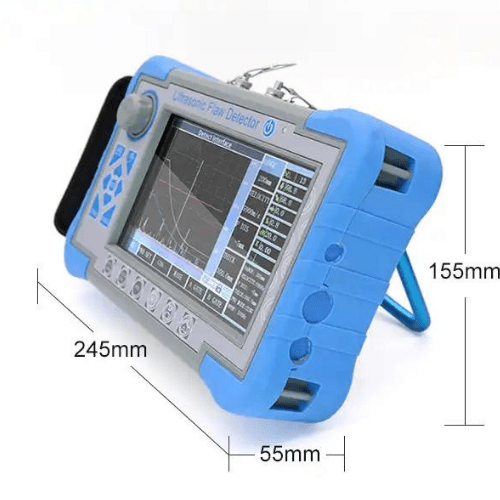

Dimension	9.65 in x 6.10 in x 2.17 in(245 mm x 155 mm x 55 mm)
Weight	2.60 lb. (1.18 kg)
