Overview

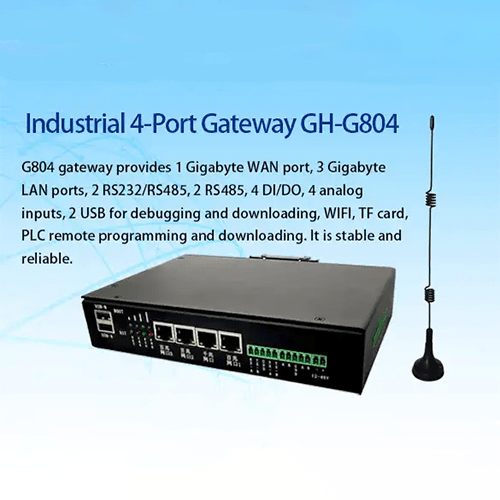

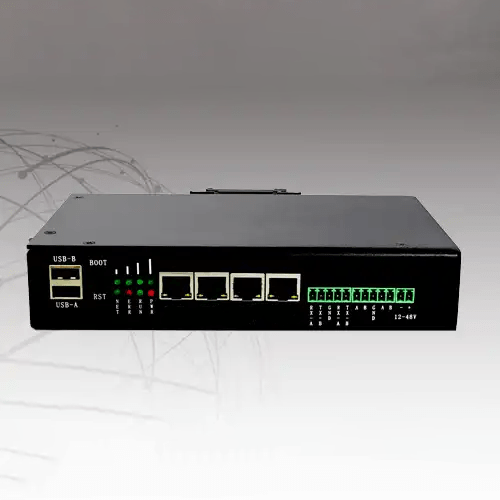

Emissions And Stack wireless transceiver equipment is a 4 G all-network gateway used to connect lower devices on the cloud platform of Cloud Internet of Things. The gateway uses high-performance industrial A 40i+ EC 200 A communication module GH-G804 gateway provides 1 Gigabyte WAN port, 3 Gigabyte LAN ports, 2 RS 232 RS 485, 2 RS 485, 4 DI DO, 4 analog inputs, 2 USB supports debugging and downloading, WIFI, TF card, GPS positioning, cloud platform, and cloud configuration.
Features
- Industrial-4 Port Industrial Gateway
- Rich and powerful configuration
- A performance industrial gateway
- Gateway supports most PLC or industrial protocols
- Remote device debugging and program download
- EMC high level protection
- Double watchdog, safe and reliable
Technical Specification
| Chipset | 4G module |
| Protocol | MQTT |
| Function | PWR, LINK, RSSl, 2G, 4G, WAN, 232, 485 and LAN indicators |
| Interface | 1 WAN, 3 LAN, 2R 232 or R 232, 2R 485 |
| Support | Serial port Siemens, Mitsubishi FX Series etc |
| Power supply | DC 9 V to 48 V |
| SM card connector | 1.8 V or 3 V |
| Transmission Rate | 600 bps to 115200 bps |
| Max power consumption | 2.6 W |
| Basic power consumption | 1.68 W |
| Working humidity | 5% to 85% |
| Working temperature | -40 °F to 149 °F (-40 °C to 65 °C) |
| Storage temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
