Overview

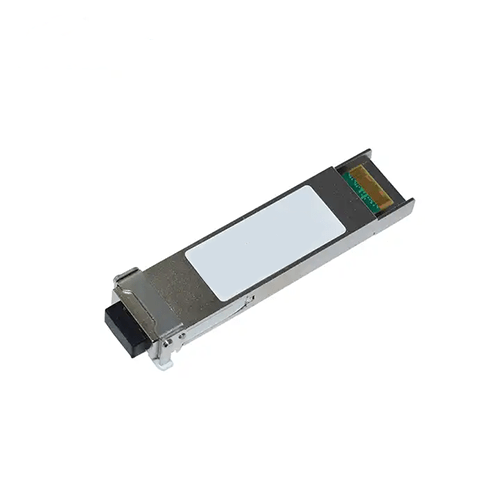

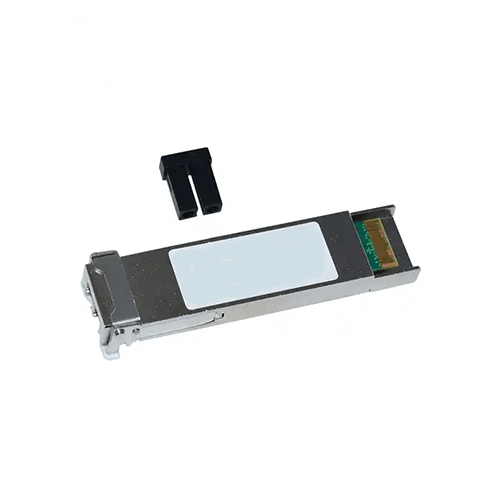

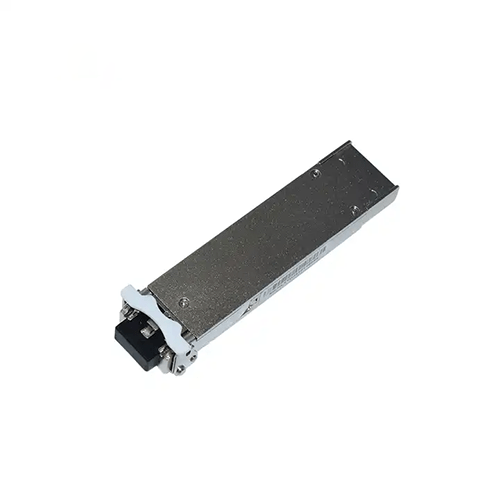

Emissions And Stack XFP DWDM 10 G Transceiver Module are designed for use in 10-Gigabit Ethernet links up to 49.70 mi (80 km) over Single Mode fiber.
Features
- Supports 9.95Gb/s to 11.3Gb/s bit rates

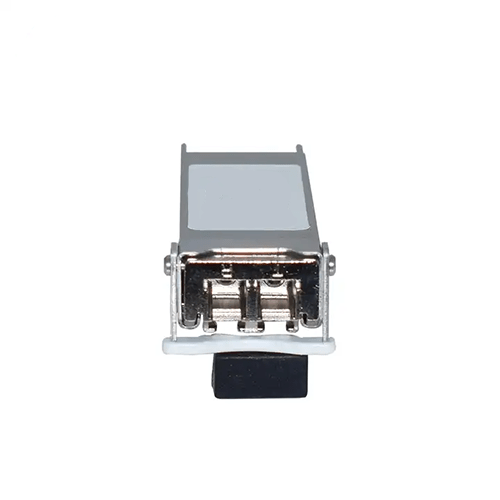

- Duplex LC Connector
- Hot-pluggable XFP footprint
- Temperature-stabilized DWDM EML transmitter and APD receiver
- 100 GHz ITU Grid, C-Band
- Applicable for 49.70 mi (80 km) SMF connection
- Low power consumption <3.5 W
- Digital Diagnostic Monitor Interface
- Operating case temperature Commercial 32 °F to 158 °F (0 °C to 70 °C)
Technical Specifications
| Form Factor | XFP |
| Data Rate | 10 Gbps |
| Transmitter | EML |
| Detector | APD |
| Connector Type | Dual LC |
| Power supply | 3.3 V |
| Transmission Distance | 49.70 mi (80 KM) |
| Operating temperature | 32 °F (0°C) to 158°F (70 °C) |
| Single package size | 3.93 in x 5.90 in x 2.36 in (10 cm x 15 cm x 6 cm) |
| Single gross weight | 0.33 lb (0.150 kg) |
