Overview

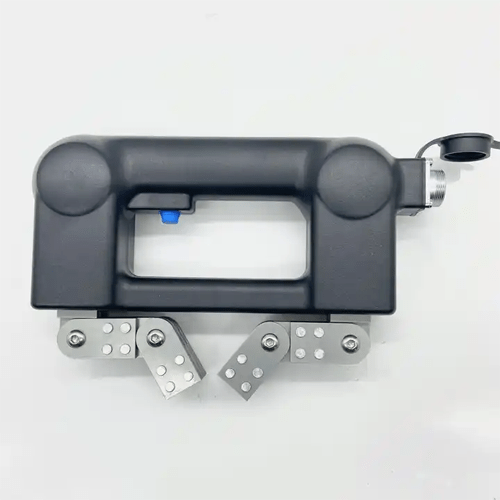

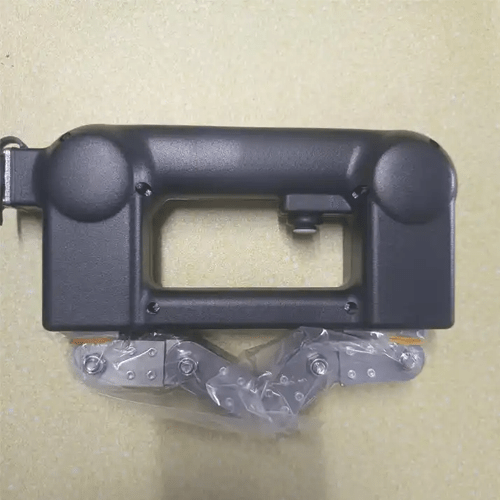

Emissions and Stack yoke magnetic flaw detector has the characteristics of compact structure, reasonable layout, small size, lightweight and convenient portability. The flaw detector can be used directly in alternating current and can also be used for AC magnetization power supply (AC battery pack) and DC magnetized power supply (DC-AC inverter battery pack), which is efficient and portable.
Features
- Durable, sealed construction
- Chemical and abrasion resistance
- AC-DC inverter battery design
- Exceeds ASTM lifting specs
- Multiple power supply options
- AC and DC magnetization functions
- Voltage regulation, safety features
- Adjustable magnetization

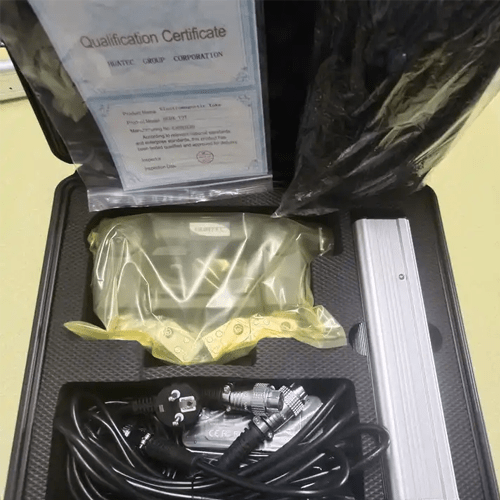

- Portable with essential accessories.
Technical Specifications
| Working temperature | 14 °F to 104 °F (-10 ℃ to 40 ℃) |
| Storage temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Relative humidity | < 80% non-condensation |
| Work temperature rise | < 64.4 °F (18 ℃) |
| Temporary load rate | > 50% |
| Sensitivity | A1 standard test piece 15/50 groove clearly displayed. |
| AC minimum power hoisting power | > 9.92 lb (4.5 kg) (44N) |
| DC minimum power hoisting power | > 17.86 lb (8.1 kg) (177N) |
| Electromagnetic Yoke | HCDX-Y9T |
| Electrode spacing | 0 in to 8.27 in (0 mm to 210 mm) |
| Maximum current | 2.8 A |
| weight | 5.73 lb (2.6 kg) |
