Overview

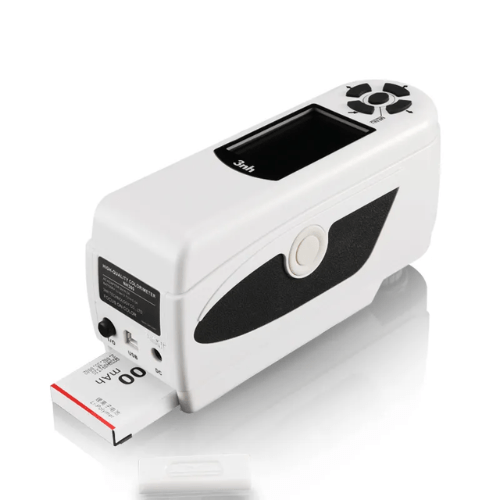

Emissions and Stackcolortest meteris a mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional importedcolorimetersand has experienced ten thousand tests and applied many innovative technologies. Accurate, Stable, Exquisite and affordable. It is a high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platformas well as efficient and accurate algorithms to provide users with accurate and fast color management and application It is also designed with ergonomics and humanized operation, and it has applied for severalpatents. It is a multifunctionalcolorimeter with high quality and competitive price. 3nh insists on independent research whosetechnology innovation is unique incolor management field and the most convenient colorimeter for users.
Features
- Leading Humanity Design and Convenient Operation
- Stable Measurement Performance
- Flexible and Accurate Locating
- More Measurement Modes
- PC Software-Realize More Function Expansion
- Advanced Power Management Design
Technical Specification
| Illuminating or Viewing Geometry | 8 or d |
| Measuring Aperture | Φ0.31 in (8mm) |
| Detector | Silicon photoelectric diode |
| Combined LED Light | Color SpaceCIELabChColor Difference Formula △Eab△Lab △EC x h |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.40ΔE x ab |
| Storage | 100pcs standards, 20000pcs samples |
| Repeatability | Standard deviation within ΔE x ab 0.07 Average of 30 measurements of standard white plate |
| Customized Aperture | 0.31 in or 0.15 in or 0.03 in x 0.11 in (8mm or 4mm or 1 mm ×3mm) Single Aperture 0.31 in or 0.39 in (8mm or 10mm) |
| Power Source | Rechargeable lithium-ion battery 3.7V at 3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 2 hours (first time 8 hours100% electricity) |
| Measuring Times Before Recharging | More than 3000 times |
| Color Spaces | D65, A, C, D50, D55, D75, F2, F7, F11 D65, A, C, D50 |
| Data Interface | USB |
| MAV or SCI | ΔE≤0.05, ΔE≤0.06 |
| Printer (optional) | Miniature thermal printer |
| MAV or SCI | ΔE≤0.2, ΔE≤0.4 |
| Measurement Mode | Single Measurement, Average Measurement |
| Locating Method | Camera View Finder Locating |
| Battery | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5 in (8.89 in) TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.0 |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Operating Environment | 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Humidity | 0% to 85% RH, Altitude <1.24 mi (2000m) |
| Storage Environment | -4 °F to 122 °F (-20 °C to 50 °C) |
| Dimension | 8.07 in x 2.75 in x 3.93 in (205 mm ×70 mm ×100 mm) |
| Weight | 17.6 oz (500g) |
