Overview

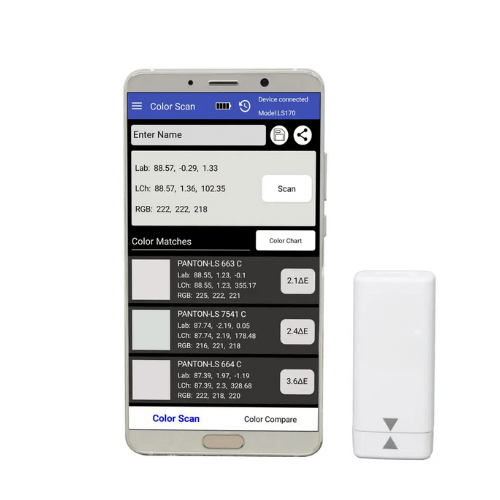

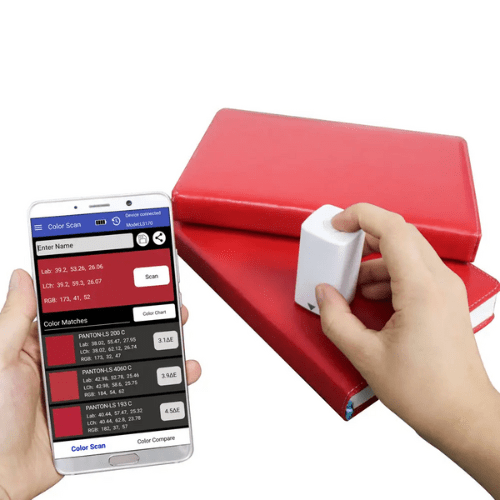

Emissions and Stackportable CIE lab colorimeter is a portable colorimeter for color measurement and color difference comparison. It adopts 45° or 0 illumination mode and is widely used in ink printing industry. The instrument is equipped with a mobile phone APP and adopts a data-based method to quickly realize colorimetric measurement and color difference comparison. The App is also equipped with Pantone C, Pantone U, NCS, RAL standard color charts, when color measurement, you can quickly match the color chart number that is close to it, and you can store the collected colors to build up your personal color chart. You can share the color value to your friends. Top of Form
Features
- Suitable for packaging and printing industry
- Easy to operate
- Difference measurement can be done with just two clicks
- Built-in four electronic color cards, provide Pantone C, Pantone U, NCS
- Multi-channel color sharing
- Seven color spaces and six color formulas
- Small and portable. Small as lipstick and it is easy to carry
- Built-in rechargeable lithium battery, type-c interface charging
Technical Specification
| Illumination Geometry | 45 or 0 (45° annular illumination, 0° viewing angle) |
| Illumination Light Source | Full Spectrum LED Light Source |
| Measuring Aperture | 0.31 in (8mm) |
| Measurement Conditions | Light source D65, field of view 10° |
| Measuring Time | About 1s |
| Color Space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Color Difference Formula | ΔEab, ΔEuv, ΔE94, ΔEcmc(21), ΔEcmc(11), ΔE00 |
| Repeatability | Standard deviation ΔE x ab ≤ 0.03 (Measurement condition the average value of 30 measurements on the white tile at an interval of 3s after calibration) |
| Power Supply | Rechargeable lithium battery 3.7V at 700mAh, can continuously measure 10,000 times under full power |
| Data Transmission | Bluetooth |
| Charging Port | USB (Type-C) |
| Operating Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Humidity | 0% to 85% RH |
| Storing Temperature | -13 °F to 131 °F (-25 °C to 55 °C) |
| Dimension | 1.24 in x 1.24 in x 2.77 in (31.7 mm ×31.7 mm ×70.4mm) |
| Weight | 1.79 oz (About 51g) |
