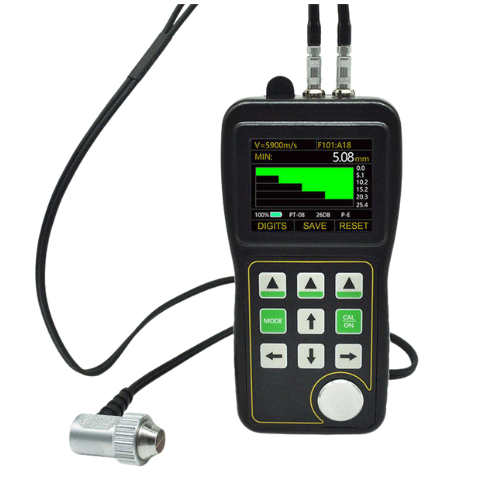

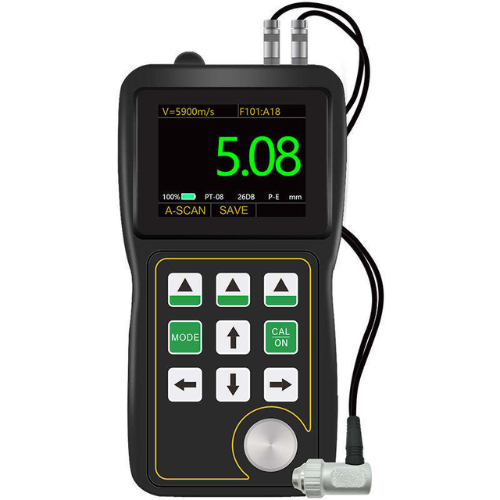

Factory Direct Sale Portable Metal, Steel and Aluminum Alloy Tester Thickness Gauge - Emissions and Stack
Factory Direct Sale Portable Metal, Steel and Aluminum Alloy Tester Thickness Gauge - Emissions and Stack - Image 2

Factory Direct Sale Portable Metal, Steel and Aluminum Alloy Tester Thickness Gauge – Emissions and Stack

A robust and portable thickness gauge designed for measuring metal, steel, and aluminum alloy surfaces. Features a large measuring range up to 508 mm (20 inches), selectable resolution, TFT color display, user-friendly interface, and long battery life—ideal for industrial inspections, welding quality checks, and material verification.

SKU: EMSPSTG-008 Category:

Features

  • Ultra-Wide Range: 0.6–508 mm
  • High Accuracy Options: 0.01 mm / 0.1 mm selectable
  • Clear TFT Display: 2.4″ color screen
  • Adjustable Rate: 4Hz / 8Hz / 16Hz updates
  • Portable & Long-Life: 0.22 kg, 35+ hrs on AA batteries
  • Durable & Customizable: IP45, 1-year warranty, OEM support



Technical Specifications

Specification Details
Type Testing machine
Working Principle IE, PE, EE
Measuring Range 0.6 in to 20.00 in (0.6 mm to 508 mm)
Measurement Resolution 0.001 in or 0.01 in (0.01 mm or 0.1 mm)
Accuracy 0.001 in or 0.01 in (0.01 mm or 0.1 mm)
Display Screen 2.4 in TFT LCD, 240 RGB × 320 dots
Material Sound Velocity Range 1640 to 32,805 ft/s (500 to 9999 m/s) or 0.0179 to 0.3937 in/μs
Measurement Update Rate 4 Hz, 8 Hz, or 16 Hz per second
Power Supply 2 × 1.5 V AA batteries
Operation Time More than 35 h
Protection Class IP45
Product Weight 0.49 lb (0.22 kg)
Dimensions (L × W × H) 5.94 in × 2.99 in × 1.46 in (151 mm × 76 mm × 37 mm)
