Overview

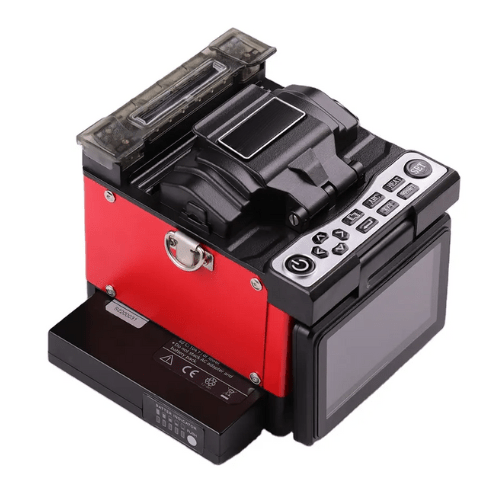

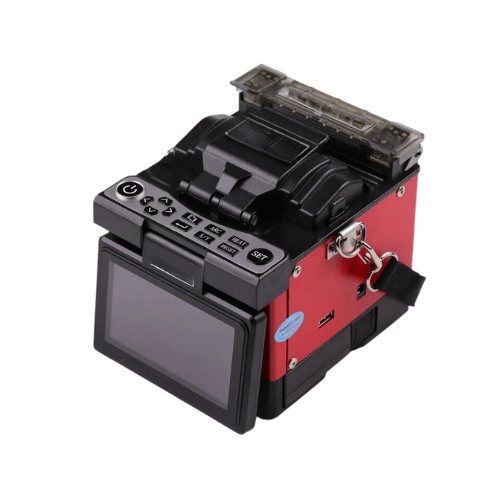

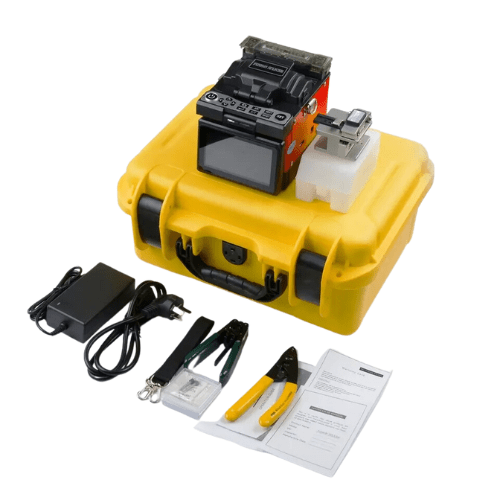

Emissions And Stack fiber optic splicing machine is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. Apply bare fibers, drop cables and jumper wires splicing.
Features
- Small, light, long battery life
- 4 motors
- Accurate core alignment
- 250 times magnification of fiber cores
- 7 s fast splicing
- 26 s intelligent heating
- More than 4000 times electrodes discharging
- 4400 mAh Li-battery
- 220 cycles splicing and heating
- Inductive automatic heater
- Not heating without fibers

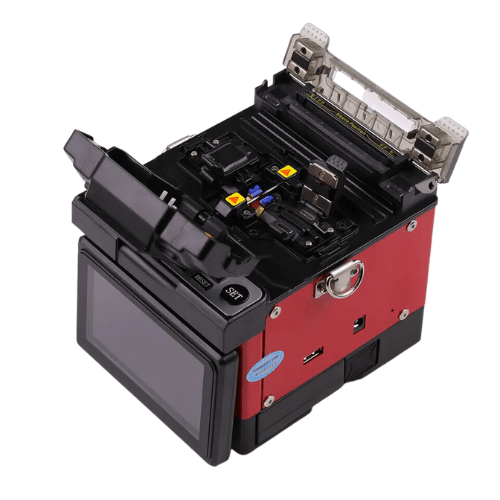

- 3 in 1 multi-function clamps
- New waterproof structure
- Apply to bare fibers, drop cables and jumper wires splicing
Technical specifications
| Applicable Fiber | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
| Diameter Of Cladding | 80 μm to150 μm |
| Diameter Of Coating | 160 μm to 900 μm |
| Typical Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB |
| Return Loss | 60 dB |
| Fiber Cleaved Length | 0.197 in to 0.63 in (5 mm to 16mm) (coating diameter < 250 um), 0.63 in (16 mm) (coating diameter: 250 um to1000um) |
| Splicing Program | 40 groups |
| Operate Mode | Automatic or Manual |
| Auto-heating | Available |
| Typical Splicing Time | 7 s |
| Typical Heating Time | 26 s |
| Fiber Magnification | 250 x (X or Y view), 125 x (X and Y view) |

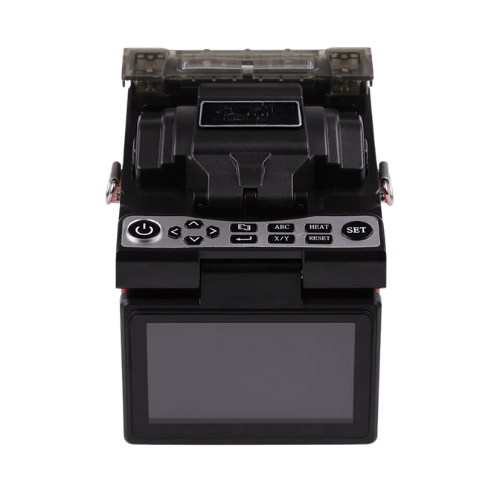

| Display Screen | 4.3 in (10.92 cm) color LCD monitor, Touch screen |
| Records Storage | 4000 results |
| Loss Evaluation | Available |
| Tension Test | 1.8 N to 2.2 N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200 mAh Li-battery, typical 250 cycles splicing and heating |
| Power Supply | Adapter, input: AC 100 V to 240 V (50 Hz or 60Hz), output: 11 V to 13.5 V |
| Electrodes Life | More than 4000 ARC discharges, can be replaced conveniently |

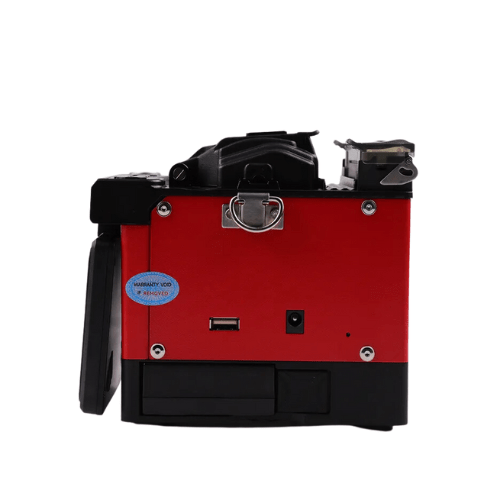

| Terminal | USB2.0 port, for software upgrading and records exporting |
| Operating Conditions | Altitude: 0 mi to 3.011 mi (0 m to 5000 m), Humidity: 0 % to 95 %, Temperature: 14 ° F -122 ° F) 10 ° C to 50°C, Wind speed: Max 15m/s |
| Dimension | 59.056 in x 47.24 in x 53.15 in (150 mm x 120 mm x 135 mm) |
| Weight | 3.64 lb. (1.65 kg) (including battery) |
