Overview

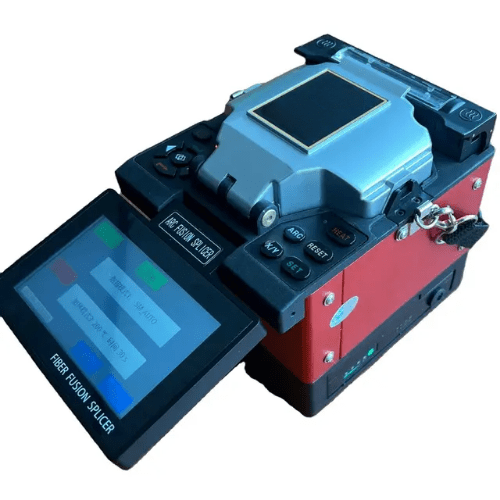

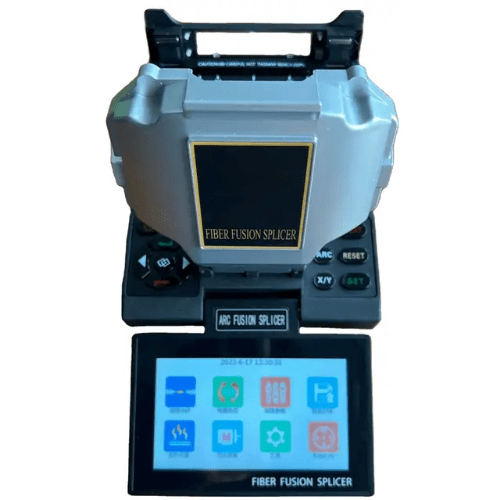

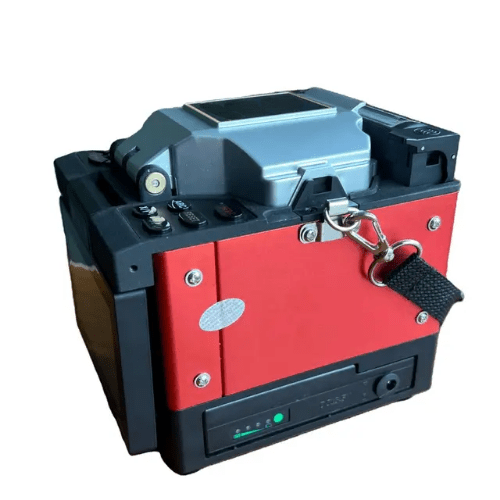

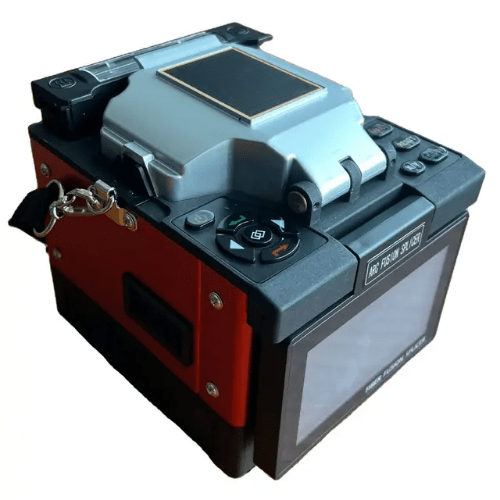

Emissions And Stack Fiber Optic Fusion Splicer is a precise, durable and convenient optical fiber construction instrument specially designed for installation, operation and maintenance of optical fiber network. It is widely used in the field of optical communication, such as the construction, inspection and maintenance of optical cables. In optical communication, the construction and maintenance of optical cables are completed by optical fiber fusion splicers.
Features
- High-power dual-LED lighting
- Convenient for night operation
- Easier to place optical fiber
- 3 in 1 Universal fiber holder
- Suitable for bare fibers, drop cables, pigtails
- Stable and Precise core to core alignment
- Low loss
- 3 in (10.92 cm) HD touch screen
- Easy to operate and flexible
- Small size
- Light weight
- Preheating function available
- Shorter heat shrinkage time
- Removable battery
- Can splice and heated for more than 200 times
- 10 language Settings
Technical Specifications
| Fiber holder | Muti-function, suitable for bare fibers, drop cables, pigtails, etc. |
| Applicable fiber | SM (ITU-T G.652&G.657) or MM (ITU-T G.651)Or DS (ITU-T G.653) or NZDS (ITU-T G.655) |
| Alignment Method | Core to core |
| Diameter of fiber | Cladding: 80 μm to 150 μm, coating:100 μm to 1000μm |
| Fiber cleaved length | 0.315 in to 0629 in (8 mm to 16 mm) |
| Splicing time | 8 s |
| Tube heating time | 20 s |
| Splicing program | Many (self regulation) |
| Tube heating program | Many (self regulation) |
| Protection sleeve length | 2.36 in (60 mm), 157 in (40 mm) |
| Storage of splice result | 3000 results |
| Typical splice loss | SM:0.02dB, MM:0.01 dB, DS:0.04dB, NZ DS:0.04dB, BI:0.02dB |
| Return Loss | >60 dB |
| Test of end-face | available |
| Loss evaluation | available |
| Operating condition | Altitude: 0 mi to 3.011 mi (0 m to 5000 m),Humidity: 0% to 95%,
Temperature: -4 °F to 122F (-20 ℃ to +50 ℃) Wind speed: max 15 m/s |
| Storage temperature | Humidity: 0% to 95%, temperature: -40 °F to 176 °F (-40 ℃to +80 ℃) |
| Fiber view magnification | 300 x (X or Y view), 100 x (X and Y view) |
| Terminals | Mini USB, Ethernet |
| Electrode life | 5000 ARC discharges |
| Power supply | Adaptor, input: AC 100 V to 240 V (50 Hz or 60 Hz),output: DC 11 V to 13.5V;
battery capacity:5200 mAh |
| Dimension | 5.12 in x 6.06 in x 5.197 in (130 mm x 154mm x 132 mm) |
| Weight | 4.3 lb (1.95 kg) (with battery) |
