Overview

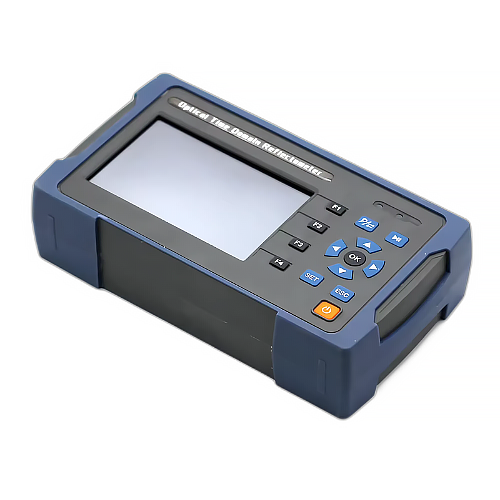

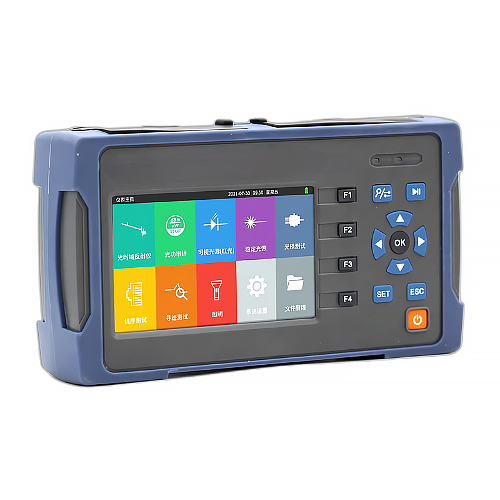

Emissions And Stack fiber precision analyzer with dual-wavelength and VFL is applied to FTTx and access network construction and maintenance, to test fiber breakpoint, length, loss, and input light automatic detection, automatic test by one key. The tester is compact with colorful LCD screen and, a new plastic shell design, and shock-proof and drop-proof.
Features
- Measurement distance: 60km.
- Touching screen.
- Test record can be saved as so format.
- Standard Function: OTDR/Optical Power Meter/ Optical Light Source/ Visual Fault Locator/Optic Loss/ Light.
Technical Specifications
| Network | Bluetooth |
| Measurement Distance | 0 mi to 37.28 mi (0 to 60 km) |
| Wavelength(nm) | 1310/1550 nm |
| 1310/1550 nm | |
| 1550 nm | |
| 1610 nm | |
| Dynamic Range | 24/22 dB |
| 26/24dB | |
| 22 dB | |
| 22 dB | |
| Measurement Distance | 37.28 mi (0 km to 60 km) |
| Type of Fiber | 9/125um SM |
| Type of Connectors | FC/PC/; SC/PC (FC/APC SC/APC–Optional) |
| Peak Value of Laser | >=30 mW |
| Dead Zone of Reflection | 2.19 mi (2 m) |
| Accuracy Distance (Reflection Event) |
About ± (1m+2 x 10(-4) x distance) |
| Dead Zone of Attenuation Event |
12 m |
| Storage of Records | 200 groups |
| Visual Fault Locator（VFL） | |
| Wavelength (nm) | 650 nm |
| Output Power | >=10 mW |
| Mode | CW，1Hz，2Hz |
| Fiber type | SM |
| Optical Power Meter | |
| Measurement Range dBm | -70 to +10 dBm |
| -50 to +26 dBm | |
| Wavelength Range（nm） | 800 to 1650 |
| Calibrated Wavelength | 850、1300、1310、1490、1550、1625 |
| Resolution | |
| Linearity | 0.1% |
| Non-linearity | 0.01 dBm |
| Optical Light Source | |
| Emitter | FP-LD |
| Wavelength (nm) | 1310 nm to 1550 nm |
| Connector | FC/PC（SC/ST as optional） |
| Output Power | ≥-5 dBm |
| Output Stability(dBm) | ±0.04@20℃@15 min |
| LCD | 3.97 in (10.08 cm) ,800*480pixels, IPS screen |
| Battery | 7.4V/4400mAH Lithium-ion battery, >5000 tests |
| Work Temperature | 23°F to 122°F (-5°C to 50°C) |
| Storage Temperature | 14°F to 140°F (-10°C to 60°C) |
| Humidity | 0 % to 85 % (non-condensing) |
| Dimensions | 7.09 in × 3.94 in × 1.77 in (18 cm × 10 cm × 4.5 cm) |
| Weight(g) | 16.90 oz (480 g) |
