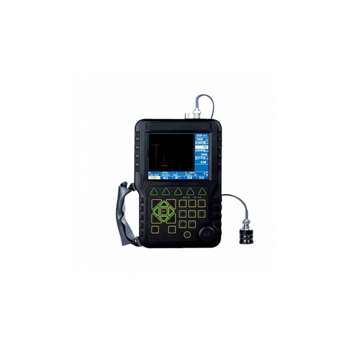

Name: Flaw Detector with High Performance Battery (Low Error Rate) -
SKU: EMSXY00ZD

Key Features

English operation key film, simple and easy to understand.
All Chinese display, master-slave menu, and the design of shortcut keys and digital jog knob, easy operation and advanced technology.
Digital true color LCD display (TFT), select the background color according to the environment and waveform color LCD brightness can be set freely.
High-performance battery module for easy removal of security, independence offline charging, high-capacity high-performance lithium-ion battery module make the instrument continuously extended to more than eight hours.
Light and small portable instrument, which can be gripped with one hand, durable, lead the industry trend.

Technical Specifications

Detection range：	(0~9999) inch
Working frequency：	(0.25~20) MHz
Velocity range：	(1000~9999) mile/s
Dynamic Range：	≥36dB
Vertical linearity error：	≤2.5%
Level linearity error：	≤0.1%
Resolution power：	>40dB(5P14)
Sensitivity Surplus：	62dB (deep 7.87inchФ2 flat bottom hole)
Digital suppression：	(0 to 80) %, does not affect the linearity and gain
Electric noise level：	≤10%
Testing channels：	100 groups testing the working channel。
Probe Interface：	Q9-Q9
Probe Type：	Straight probe, Oblique probe, duals, penetrating probe (compatible with 4 kinds of series of different specifications of the probe)
Sluice gate：	Into the gates, lost wave gate; single gate reading, double gate reading
Call the police：	Beep alarm, LED light alarm
Power supply：	Direct current (DC) 9V; lithium continuously for more than 6 to 8 hours
	Dimensions：10.35×6.69×2.40 (inch)
	Ambient temperature： (-14~144) F
	Relative humidity： (20~95) %RH
