Overview

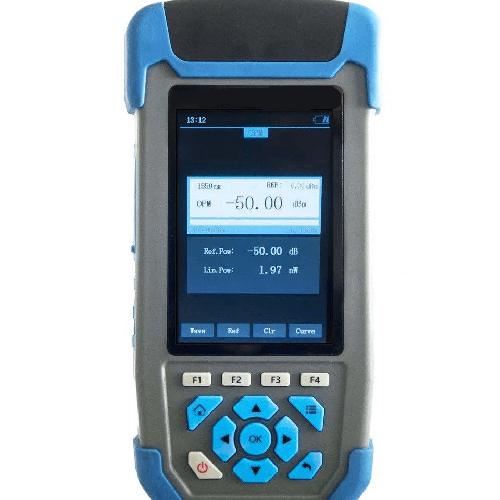

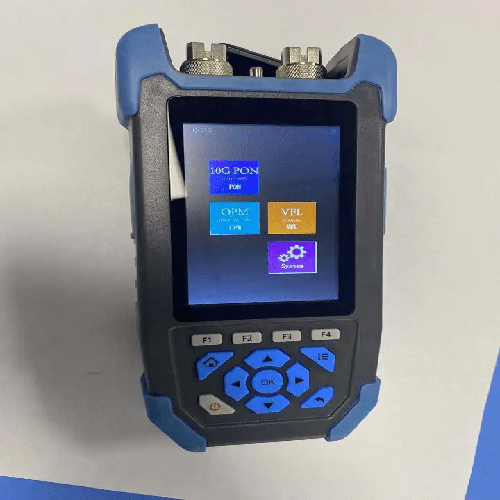

Emissions And Stack Handheld Optical Power Meter is a new FTTX business and maintenance test instrument. It not only supports all functions of traditional PON OPM but also has the next-generation power measurement function. It is an ideal choice for PON network engineering, construction and maintenance to judge whether the optical power reaches the standard accurately by the threshold data set by the user.
Features
- Easily test FTTX or PON OPM
- Support data storage
- High-performance broadband power meter option with universal connector interface
- Data transfer and remote control via USB to C
- Use for testing, opening, and maintaining all types of FT × PON networks

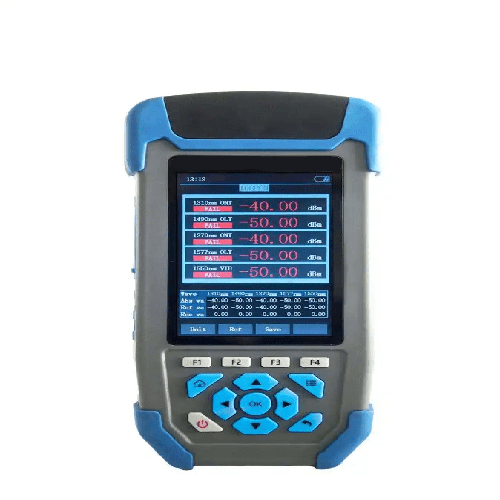

- Adopt passing mode test; most cant voice, data and RF video at the same time signal, split screen display
- 92 mi or 0.96 mi or 0.97 mi (1490 m or 1550 m, or 1577 m), and upstream burst mode 0.78 mi or 0.81 mi (1270 m or 1310 m) optical power
Technical Specifications
| Measuring Wavelength | 1310 nm, 1490 nm, 1550 nm, 1270 nm, 1577 nm |
| Measurement Range | +10 dBm to -40 dBm |
| Spectral Pass Band | 1310 nm ± 50 nm, 1490 nm ± 10 nm, 1550 nm ± 30 nm |
| Isolation | 1490 nm waveband > 40 dB, 1310nmwaveband > 40 dB, 1490 nm waveband > 40 dB, 1550 nm waveband > 40 dB, 1550 nm waveband > 40 dB, 1550 nm waveband > 40 dB |
| Measuring Range | +10 dBm to -40 dBm |
| Through Mode IL | < 1.5 dB |
| Uncertainty | < 0.5 dB |
| Display Resolution | 0.01 dB |

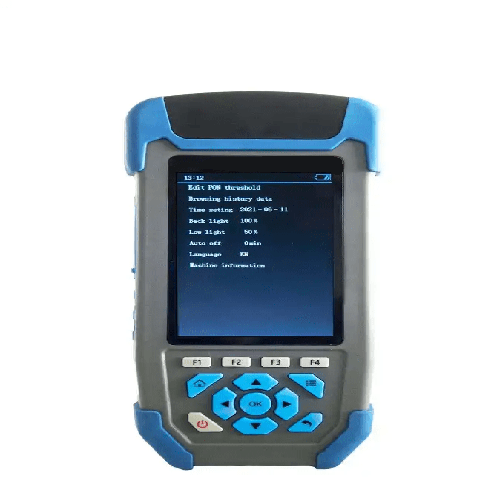

| Threshold Setting | 10 group |
| Data Storage | 1000 group |
| Work Temperature | 50 °F to 140 °F (10 °C to 60 °C) |
| Relative Humidity | 0 % RH to 95 % RH |
| Fiber Interface Type | SC or PC (APC optional) |
| Communication Interface | USB Interface |
