Overview

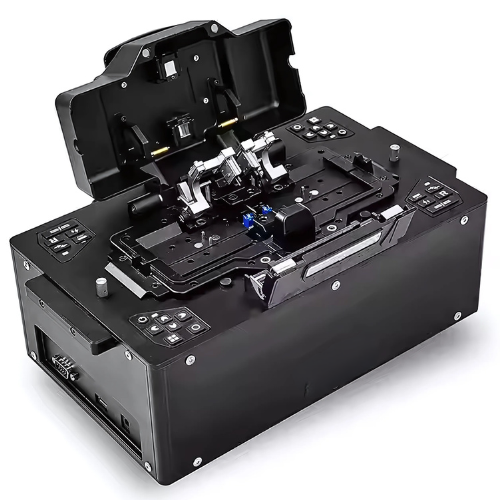

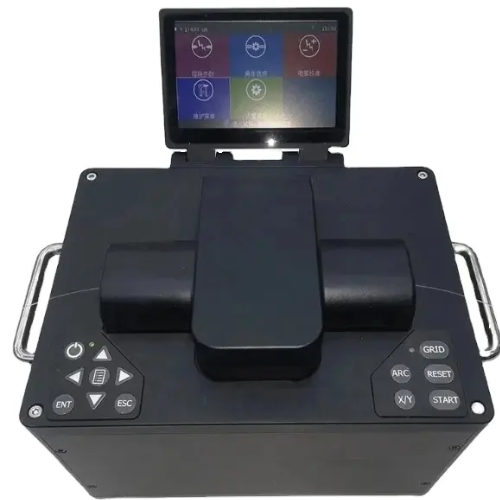

Emissions And Stack fusion splicer machine with cleaver and laser source is large diameter optical fiber fusion splicer can splice single optical fiber, which can be used to splice optical fiber with cladding diameter in the range of 125 um to 500um. Application areas are fiber laser device production and testing, fiber laser production and manufacturing.
Features
- Minor customization
- Design based customization
Technical Specifications
| Number of Optical Fibers | Splicing a single fiber |
| Fiber Cutting Length | Holding bare fiber 6 mm to 10 mm |
| Fiber Cladding Diameter | 125 um to 500 um |
| Fiber Coating Diameter | 125 um to 500 um |
| Typical Splice Loss | 0.05 dB |
| Typical Splicing Time | 25 S |
| Electrode Life | 2500 discharges |
| Electrode Spacing | 1 mm to 3.0mm |
| Electrode Height Offset | -0.1 mm to 0.3 mm |
| Pull Test | 1.96 N to 2.45 N |
| Electrode Life | 3000 times |
