Overview

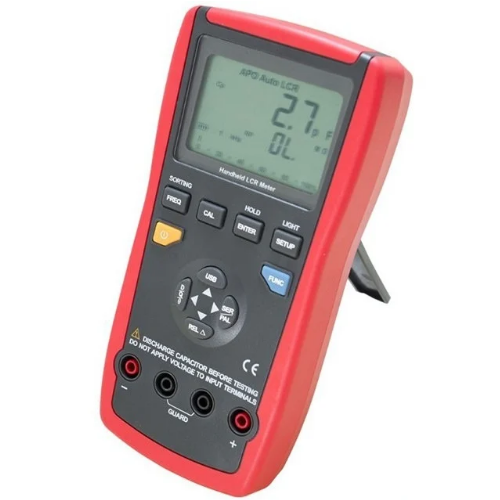

Emissions And Stack’s Handheld Digital LCR Meter 100 kHz is designed to test passive components, including inductance, capacitance, and resistance, with exceptional precision. It supports both series and parallel measurement modes, enabling evaluation of quality factor, dissipation, and phase angle. With selectable test frequencies up to 100 kHz, auto-ranging capability, and a dual 20,000/2,000 count display, it offers accurate and versatile component analysis. Its compact design, data storage capability, and USB interface make it ideal for laboratory, educational, and quality control environments.
Features
- Dual display with 20,000/2,000 counts for high-resolution readings.
- Test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz
- Auto-ranging LCR mode with 0.3% + 5 basic accuracy
- Measures L, C, R, DCR, Q, D, θ, and ESR parameters
- Supports both series and parallel testing modes
- Auto smart check mode for quick quality control
- 26-segment analog bar graph display
- Data hold and relative measurement functions
- Backlit LCD for low-light use
- Auto power-off and low-battery indication
- USB interface for PC connection and data logging (up to 60,000 points)
- Operates on 9 V battery or USB power supply
Technical specifications
| Inductance (L) | 20 µH to 20 kH ± (0.5% + 5) |
| Capacitance (C) | 200 pF to 20 mF ± (0.5% + 5) |
| Resistance (R) | 20 Ω to 200 MΩ ± (0.3% + 5) |
| Measuring Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz |
| Measuring Voltage | 0.6 Vrms |
| Measurement Parameters | L, C, R, DCR, Q, D, θ, ESR |
| Display Count (Max) | 19,999 (Main), 1,999 (D/Q) |
| D/Q Resolution | 0.001 |
| Range Mode | Automatic |
| Display Type | Real-Time Frequency Display |
| Measurement Modes | Series or Parallel |
| Auto Power Off | Yes |
| Low Voltage Display | ≤ 6.8 V |
| Data Hold | Yes |
| Relative Measurement | Yes |
| USB Data Transmission | Yes |
| Data Recording Capacity | Up to 60,000 Records |
| LCD Backlight | Yes |
| Analog Bar Graph | 26 Segments |
| Auto LCR Identification | Yes |
| Power Supply | 9 V Battery (6F22) or USB Power |
| Display Size | 1.57 in x 2.48 in (40 mm x 63 mm) |
| Dimensions | 3.78 in x 7.60 in x 1.85 in (96 mm x 193 mm x 47 mm) |
| Weight | 0.93 lb (420 g) |
