Overview

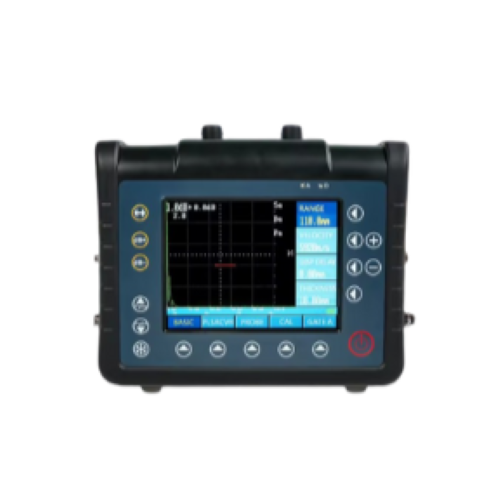

Emissions And Stack’s Handheld Portable Ultrasonic Flaw Detector for Metal Testing This is a portable, high-precision non-destructive testing instrument designed for detecting cracks, inclusions, pores, and other defects in metals, composites, and selected non-metallic materials. Built with a rugged IP54-rated housing, it features a 5.7” TFT color display, real-time screen projection, high sampling rate, multi-language support, and long battery life, making it suitable for industrial applications such as manufacturing, aerospace, railways, and power systems
Technical Specifications
| Parameter | Specification |
| Type | Ultrasonic Flaw Detector |
| Detection Range | 0–25,000 mm |
| Sound Velocity | 1000–25,000 m/s |
| Sensitivity Reserve | ≥ 62 dB |
| Dynamic Range | ≥ 46 dB |
| Horizontal Linearity Error | ≤ 0.1% |
| Vertical Linearity Error | ≤ 3% |
| Far-Field Resolution | ≥ 30 dB |
