Overview
Emissions And Stack FTTH Fiber Optic Cable Blowing Welding obtaining 16 patents of invention and 58 technical innovations. It implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with the old version, our start product, it lowers the size by 38 %, the weight by 52 %, the power consumption by 57 %, but improves the speed by 60 %, the environment adaptability by 80 % and the reliability (MTBF) by 200 %. You can get unprecedented fusion splicing experience.
Features
- Precise fiber core alignment, ultra-low fiber fusion splicing
- consumption 7 s fast fusion splicing, 18 s highly efficient heating
- 220 times image magnification, 5 mm fusion splicing for fibers of ultra-short cutting length
- 300 groups of fusion splicing modes, 100 groups of heating modes
- 10000 groups of fusion records, 64 images storage

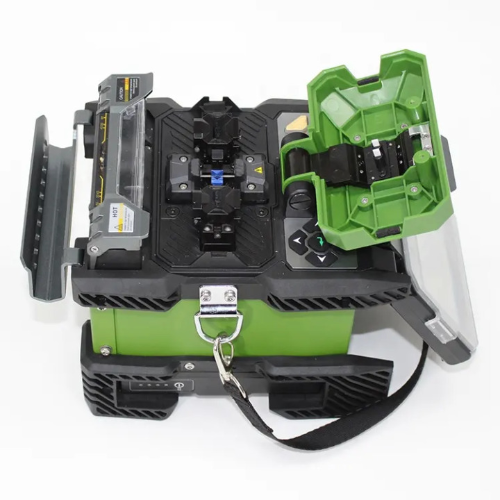

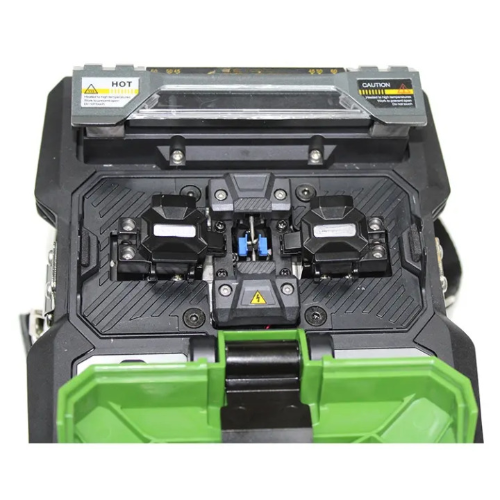

- Ceramic presser foot, ceramic V-block, all-in-one
- Dual-direction splicing, automatic splicing, intelligent pyro condensation
- USB and SD card interfaces, U-disk automatic software upgrade
- Built-in modular lithium battery supports 220 times of splicing and heating cycles
- Small in size and light in weight, the splicer is easy to carry and can be lift by one hand
Technical specifications
| Network | Optic Fiber Network |
| Applicable Fibers | SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber |
| Average Splice Loss | 0.02 dB (SM),0.01 dB (MM),0.04 dB (DS),0.04 dB (NZDS) |
| Protection Sleeve Length | 0.787 in (20 mm), 1.57 in (40 mm), 2.3 in (60 mm) |
| Type | Fusion Splicer |
| Fiber Cleaved Length | 0.31 in to 0.86 in (8 mm to 22 mm) |
| Tension Test | 2.0 N (200 gf) (Standard) |

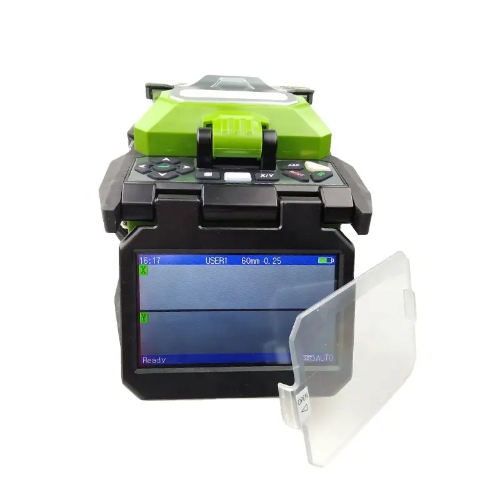

| Display | 4.3-inch Color LCD monitor |
| Operating Mode | Fully Automatic, Semi-automatic and Manual Operation |
| Battery Capacity | more than 150 times splice and heat at each full charge |
