Overview

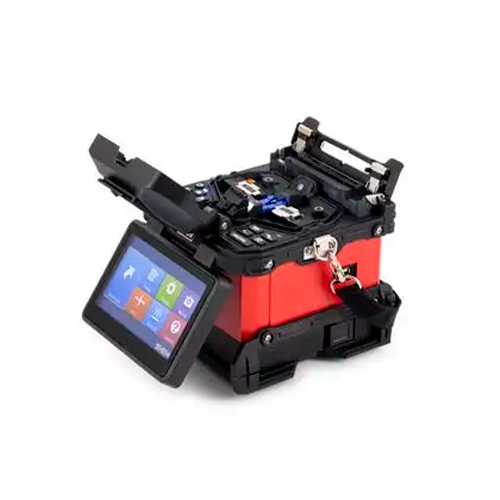

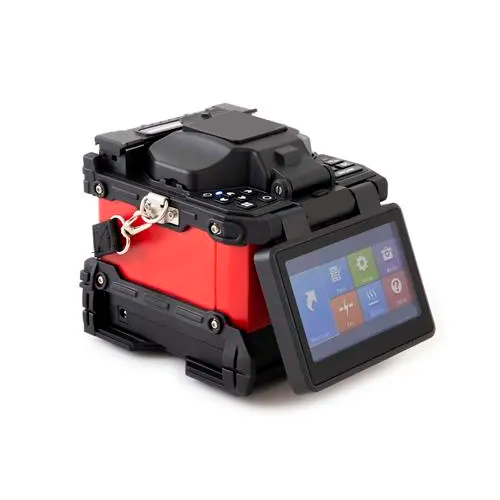

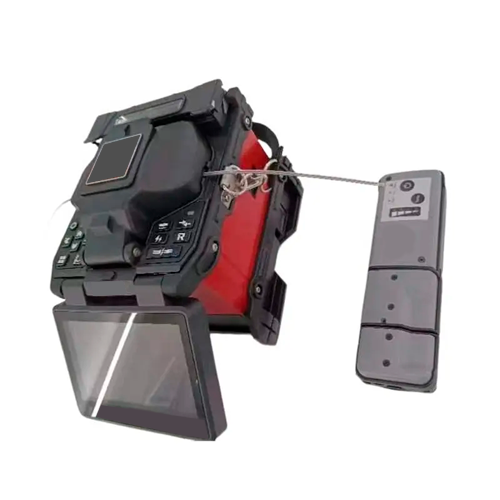

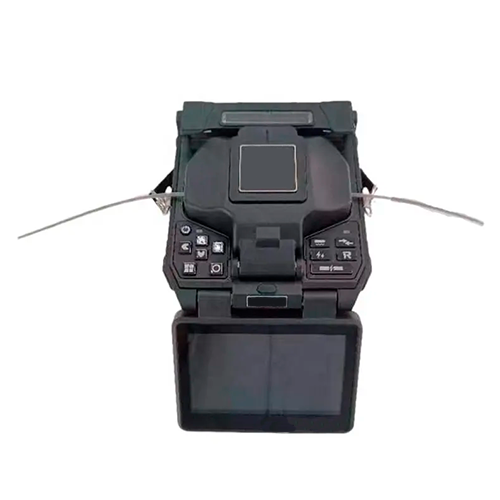

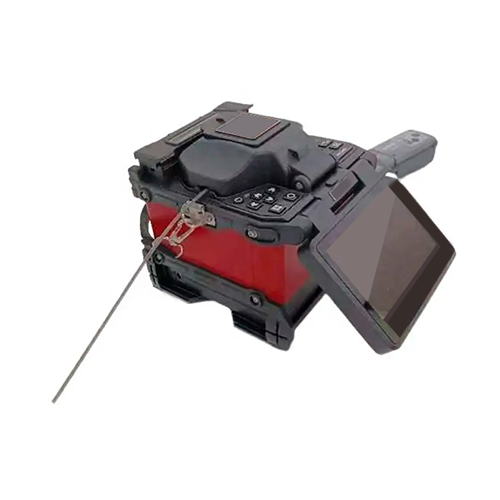

Emissions And Stack Clad to Clad Ribbon Fiber Fusion Spicer is mainly used to connect optical fibers with high performance and reliable quality, which can be further connected with ordinary optical fiber cables, jumpers, multiple-mode, and dispersion-shifted quartz optical.
Features
- Applicable to 2 to 12 ribbon fibre splicing
- Accurate alignment, world standard fusion loss 20s splicing time
- Heating 1-2 or 4-12 fibre ribbon 26 s or 40 s
- Applicable to different types of fibres
- Ruggedized body, waterproof, anti-dust, anti-shock
- Pluggable Li-battery supports separate charging
- Easy to maintain, easy to replace the electrodes
- USB port for software upgrading records exporting
- Support 4000 or 100 groups fusion records or fusion images
- Comply with CE or Rohs I nondurational standard
Technical Specifications
| Alignment Method | Clad to Clad |
| Applicable fibre | SM (G.652) MM (G.651) DS (G.653) ，NZDS (G.655) |
| Typical Spice Loss | SM: 0.05 dB; MM: 0.02 dB; DS: 0.08 dB; NZDS: 0.08 dB |
| Operation Mode | Manual or Automatic |
| Viewing Display | Dual high sensitivity camera, 5 in (12.7 cm) 800 x 480 LCD Monitor |
| Battery Capacity | 5200 mAh Li-battery, 150 cycles splicing and heating |
| Power Supply | Adaptor, input: AC 100 V to 240 V (50 Hz or 60 Hz), output: DC 11 V to 13.5 V |
| Tension Test | 1.8 N to 2.2 N |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude: 0 mi to 3.11 mi (0 to 5000 m), Humidity: 0 % to 95 %, Temperature: 14 °F to 122 °F (-10 ℃ to +50 ℃), Wind: max 15 m/s |
| Dimension | 6.10 in x 5.66 in x 6.10 in (155 mm x 144 mm x 155 mm) |
| Weight | 5.07 lb (2.3 kg) |
