Overview

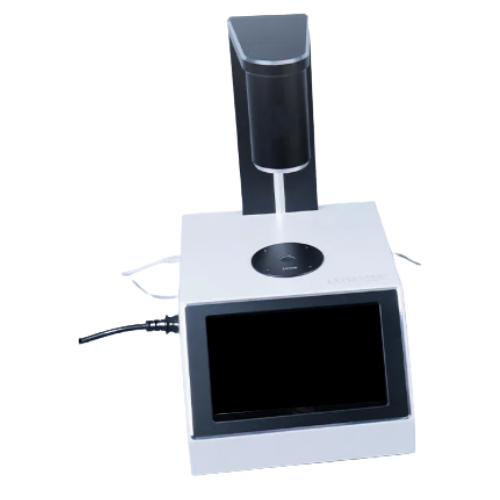

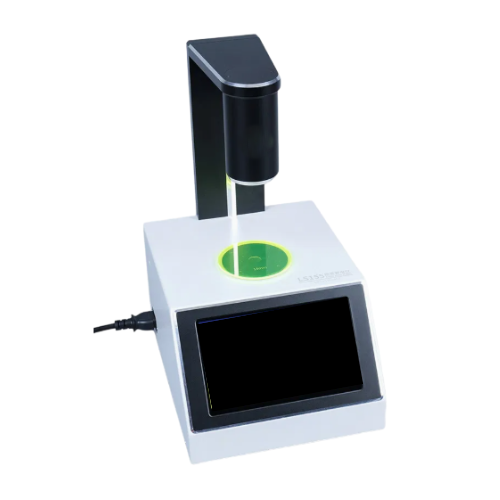

Emissions and Stack LS155 High-Precision Liquid Colorimeter with Touchscreen Display is a multifunctional haze meter built for the precise measurement of color, transmittance, haze, turbidity, and platinum-cobalt (Hazen) value in film, plastic, packaging, pharmaceutical liquids, and glass. Featuring D/0° illumination geometry, full-spectrum LED, 5 mm and 14 mm apertures, and a 7-inch capacitive touchscreen, it offers spectral transmittance curve visualization, robust repeatability (ΔE*ab ≤ 0.03), and compliance with both ASTM and ISO testing standards. The benchtop unit supports USB data export, PC software, and delivers both horizontal and vertical measurement modes—complete with a 1-year warranty, free technical support, and OEM customization.
Features
- Measures haze, transmittance, CIE Lab, LCh, Yxy, turbidity, Pt-Co
- Full-spectrum LED illumination with D/0° geometry
- Dual apertures7-inch capacitive color touchscreen Available in vertical and horizontal modes for flexible sample handling, including liquids with optional cuvette holderHigh repeatability
- Built for ASTM and ISO standard compliance, ensuring trusted quality control results
- Equipped with PC software via USB-C for data export and report generation
Technical Specifications
| Lighting Geometry | D/0 DEGREES |
| Light Source for Lighting | Full Spectrum LED Light Source |
| Spectral Range | 400-700nm |
| Spectral Interval | 10nm |
| Measuring Opening | 5mm/14mm |
| Measurement Conditions | Light Source D65, field of view 10 degrees; light source A, field of view 2 degrees; light source C, field of view 2 degrees |
| Measuring Time | About 3s |
| Measurement Parameters | Haze, transmission, CIE Lab, LCH, YXY, spectral transmission |
| Transmission Resolution | 0.01% |
| Transmission Accuracy | Better than ±1% |
| Repeatability of Transmission | ≤0.03 |
| Dissolution of Haze | 0.01% |
| Inaccuracy in Haze | Better than ±2% |
| Repeatability of Haze | ≤0.03 |
| Repeatability of Colors | Standard deviation ΔE*ab is within 0.03 (measurement condition: the mean of 30 measurements on the whiteboard at an interval of 3s after calibration) |
| Power Supply | 100~277V 0.4A 50/60HZ |
| Show | 7-inch IPS color screen with 1024 * 600 dot matrix |
| Data Transfer | USB (Type C) |
| Operating Temperature Range | 0-45ºC, 0-85% Relative Humidity (non-condensing) |
| Storage Temperature Range | 25-55ºC, 0-85% Relative Humidity (non-condensing) |
