Overview

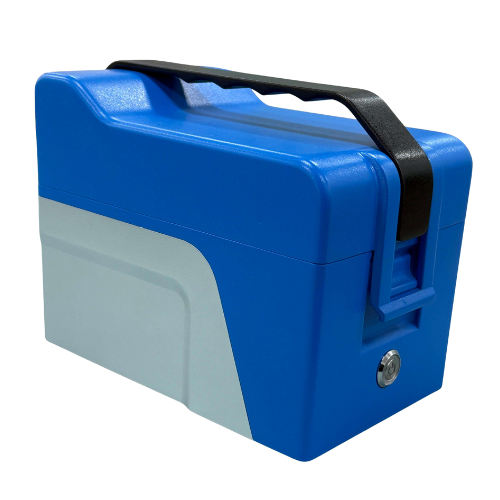

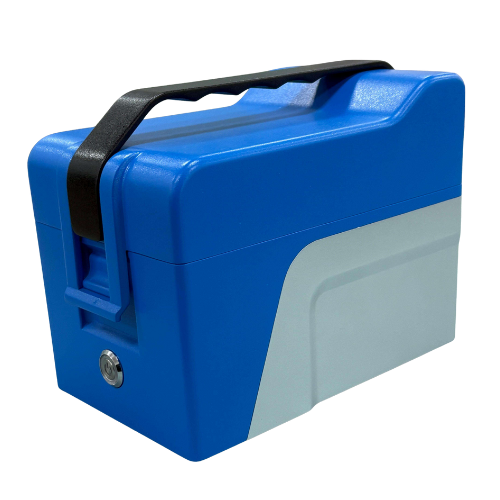

Emissions And Stack Portable Kinematic Viscometer is a high-precision, multi-functional portable viscosity measurement instrument. This product complies with ASTM D8092 standards, ensuring the accuracy and reliability of measurement results. It employs an advanced split-cell capillary sample chamber design, which is easy to clean and maintain. This device supports the testing of transparent oil samples, as well as black and heavily contaminated oil samples, without the need for pretreatment.
Features
- Allows testing of almost any sample, including transparent oil samples, black, and heavily contaminated oil samples, without any pretreatment
- Requires minimal consumables, resulting in low processing costs and minimal environmental impact
- Features an open-close capillary sample cell that is easy to clean; simply wipe the surface of the sample cell with a non-abrasive cleaning pad
- Requires only 60µL of oil sample, ensuring that sampling does not affect lubricant levels; volumetric pipettes ensure measurement accuracy
- Eliminates issues related to solvent transportation and waste liquid discharge, and is more suitable for on-site use
- No pre-testing is required; each sample can be maintained at a constant temperature during testing
Technical Specifications
| Accuracy | ≤ ±3% of measured value |
| Input Method | 4-wire resistive touch screen |
| Interface | USB interface |
| Display Screen | 2.8-inch LED display 320 × 240 pixels |
| Battery Module | 24 V 2600 mA rechargeable |
| Sample Cell | Open-close capillary sample cell |
| Photoelectric Sensor | Through-beam photoelectric sensor |
| Software | Embedded software |
| Data Storage and Export | Built-in memory |
| Repeatability | RSD ≤ ±3%, typical |
| Viscosity Range | 10 to 350 cSt at 104 °F (40 °C) |
