Features
- Supports data transmission at 10 Gbps (Gigabits per second)
- Providing high-speed connectivity for various applications
- Utilizes Dense Wavelength Division Multiplexing (DWDM) technology
- Enabling multiple optical signals to be transmitted
- Over a single optical fiber using different wavelengths
- Operates within the C band wavelength range
- Typically spanning from around 1525 nm to 1565 nm, which is
- Commonly used for long-haul and ultra-long-haul optical transmission
- Capable of transmitting data up to 24.85 mi (40 km)
- Making it suitable for medium to long-distance data transmission

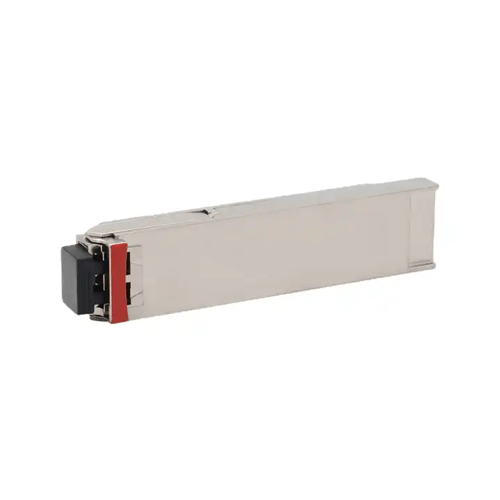

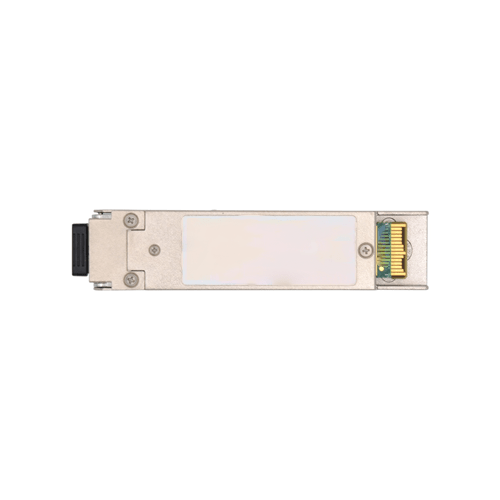

- Transceiver is in XFP (10 Gigabit Small Form Factor Pluggable) form-factor
- Hot-pluggable optical module commonly used in high-speed data networks

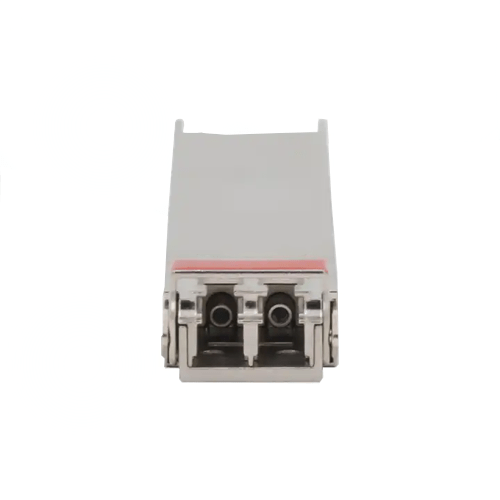

- Features a duplex LC (Lucent Connector) interface
- For bi-directional data transmission over a single optical fiber cable.
- Provides digital diagnostic capabilities to monitor critical parameters
- Like temperature, voltage, and optical transmit and receive power levels
- Aiding in system diagnostics and performance monitoring.
- Designed with energy-efficient features to minimize power consumption,
- Reducing heat generation and enhancing overall system reliability.
Technical Specifications
| Optical Module Type | 800 ps/nm-C Band (Odd & Even Wavelengths)-Fixed Wavelength-NRZ-PIN-XFP |
| Line code format | NRZ |
| Maximum mean launched power | 2 dBm |
| Minimum mean launched power | -3 dBm |
| Minimum extinction ratio | 9 dBm |
| Center frequency | 192.10 THz to 196.05 THz |
| Center frequency deviation | ±10 GHz |
| Eye pattern mask | G.959.1-compliant |
| Maximum -20 dB spectral width | 0.3 nm |
| Minimum side mode suppression ratio | 35 dB |
| Dispersion tolerance | 800 ps/nm |
| Receiver type | PIN |
| Operating wavelength range | 1200 ps/nm to 1650 ps/nm |
| Receiver sensitivity, EOL (FEC on) | -16 dBm |
| Dimensions | 5.31 in x 2.95 in x 1.3 in (13.5 cm × 7.5 cm × 3.3 cm) |
| Weight | 0.11 lb (50 g) |
