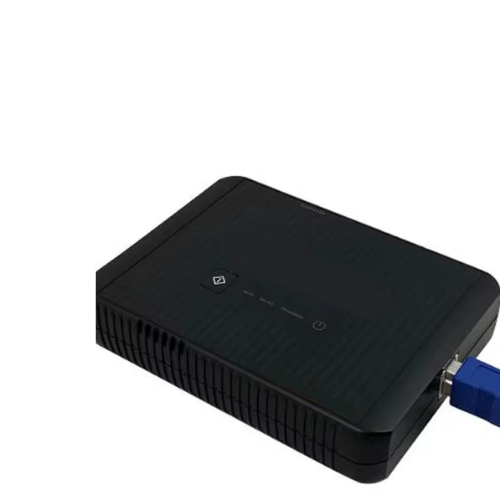

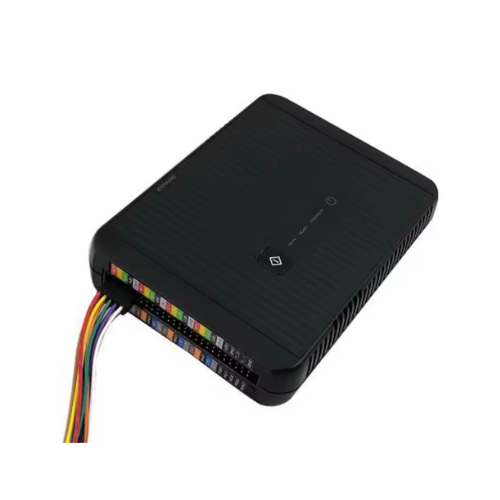

High – Speed USB 3.0 Logic Analyzer and DSO for Long – Term Recording – Emissions And Stack

Connect a high-speed USB 3.0 logic analyzer and DSO for long-term recording, featuring 2 GHz sampling and 32 channels.

SKU: EMSOULA-104 Category:

Features

  • Acquisition channels are available in 16 or 32, with a USB 3.0 interface for fast data transfer and connectivity.
  • The internal sampling frequency is a high 2 GHz, while the external state is 250 MHz, with a dual-edge capability.
  • Memory per channel is extensive, ranging from 4 megabytes up to 1 gigabyte, offering flexible data storage options.
  • Trigger events are versatile, including patterns, edges, pulse-widths, and time intervals for precise signal capture.
  • The device supports a wide range of protocol triggers, such as I2C, SPI, and UART, for various applications.
  • It features over 120 free, built-in protocol decoders, simplifying the analysis of complex digital signals.
  • The maximum input DC voltage is ±30 V, ensuring robust protection and broad compatibility with different signal levels.



Technical Specifications

Acquisition Channels 16 or 32
Interface USB 3.0 (2.0 compatible)
Internal (Timing) Sampling Frequency 2 GHz
External (State) Sampling Frequency 250 MHz (Dual-Edge)
Memory/Channel 4, 8, 16, 32, 64, 128, 256, 512Mb, 1Gb
Trigger Channels 16 or 32
Trigger Events Pattern / Edge / Pulse-width / Interval (Time)
Trigger Delay Yes
Trigger Sequence Levels 256
Trigger Pass 1-65,535
Trigger Voltage 4 simultaneous levels; 1 for each of the 4 ports
Auxiliary Cursors 250
Protocol Triggers (HW) I2C, I2S, SPI, SVID, UART, CAN2.0B
Languages English, Chinese (Traditional), Chinese (Simplified)
Zooming & Panning Two cursor modes
Waveform & UI customization Modify the appearance of channels, menus, traces, windows, etc.
State List & Waveform View Present the samples as a list of 1s and 0s or as a waveform
DSO Connection Connect to and import signals from DSOs
Files Comparison Compare 2 files to quickly see where and how they differ
Navigator Instantly navigate to distant parts of the waveform
Memory View See what the memory looks like; what is read/written to each address
Packet List Breakdown of all packets in list form
Statistics Table view of number of periods, periods that satisfy conditions, etc.
Find Results Set conditions, look up the information meets the requirement
Real-time Signal Activity Live view of probe activity
Protocol Decoders More than 120 free, built-in protocol decoders
Power USB 5V
Trigger Level User-defined
Trigger Level Range -6 to 6V
Trigger Level Resolution 10mV/STEP
Reference Level Accuracy ±100mV+5%Vth
Input DC V (Max) ±30 V
Dimensions 4.92 in × 3.62 in × 0.98 in (125 mm x 92 mm x 25 mm)
