Overview

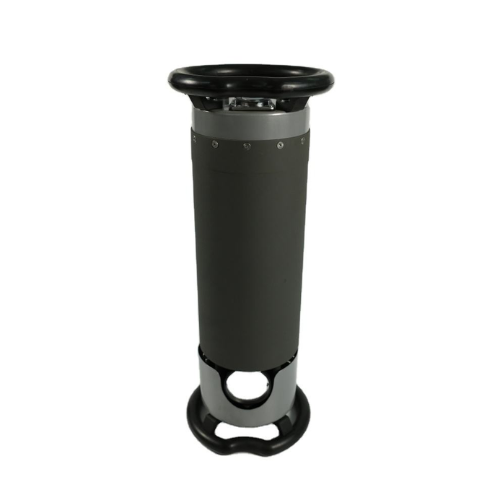

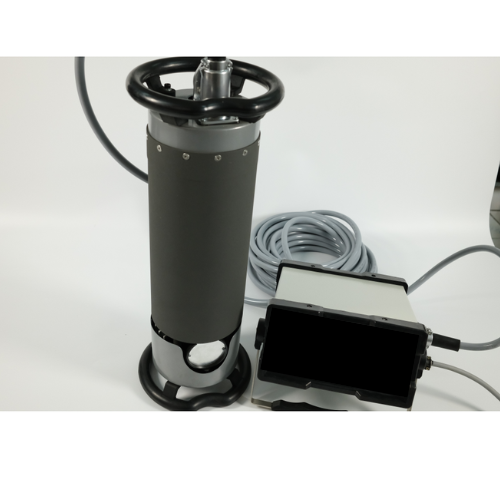

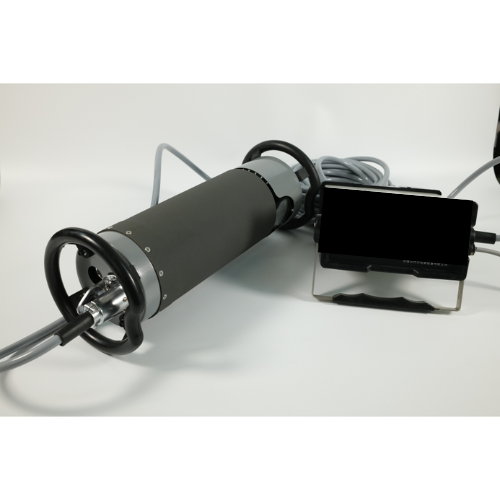

Emissions and Stack Industrial Flaw Detector Directional Tube is a compact and lightweight X-ray inspection device designed for nondestructive testing applications. This product features a high-penetration directional ceramic tube, making it ideal for precise welding and material inspections. It is easy to transport and deploy in various industrial settings, providing reliable flaw detection with minimal setup. The device comes with a standard wooden case for secure storage and transportation, supporting efficient and safe operation in the field.
Features
- Portable and lightweight design for easy transport and operation
- Directional ceramic X-ray tube for high penetration
- Suitable for industrial nondestructive testing and welding inspection
- Ultra-compact size for use in tight or hard-to-reach spaces
- Robust construction for reliable field performance
- Easy-to-use interface for quick setup and operation
- High safety standards with protective housing and controls
- Ideal for detecting internal flaws in metals and welded joints
Technical Specifications
| Type | Industrial portable X-ray machine |
| Field | Nondestructive testing |
| Theory | Welding inspection |
| Product Advantage | Ultra-small and lightweight with strong penetration |
| Operating Voltage | DC 12V or AC input |
| Power Supply | Battery or mains |
| Battery Life | ≥8 hours |
| Tube Voltage | 150 kV to 250 kV |
| Tube Current | 5 mA |
| Tube Type | Ceramic tube |
| Beam Angle | Directional 40° to 45° |
| Focus Size | 0.79 in x 0.79 in (2.0 mm x 2.0 mm) |
| Max Penetration | 1.54 in (39 mm) |
| Cooling Method | Air fan cooling |
| Insulating Material | SF6 gas |
| Temperature Operating | 14 °F to 122 °F (-10 °C to 50 °C) |
| Temperature Storage | -22 °F to 122 °F (-30 °C to 50 °C) |
| Weight | 132 lb (60 kg) |
| Size / Dimension | 31.50 in x 15.75 in x 15.75 in (80 cm x 40 cm x 40 cm) |
