Intelligent Peristaltic Pump with HD Touch Screen Control – Emissions And Stack

Overview

EMSPP-112 Intelligent flow peristaltic pump, can realize high precision continuous transmission and simple quantitative function. 4.3-inch HD LCD touch screen display, simple operation. Support Lead Fluid APP software, which can remotely control the pump and monitor the running status in real time. Powerful functions to meet complex transmission requirements. RS485 communication, MODBUS protocol is available, adapt to different communication equipment.



Features

• 4.3-inch color LCD display, visual.

• Touch screen cooperates with keypads operation, bring good user experience.

• LF-Touch-OS software system, efficient and stable, has a good human-computer interaction mode. convenient product customization and upgrading.

• The standard functions such as start/stop, reversible direction, full speed, back suction, state memory, can directly input flow or speed parameters.

• With the flow and time working mode.

• Precise flow control and display, micro-step algorithm to ensure the dispensing accuracy of different settings.

• Wizard-type flow calibration function, simple and easy to use.

• Delay start and delay stop function.

• Unique back suction function to effectively prevent liquid dripping.

• Reserved five-group dispensing parameters for time dispensing.

• Intelligent temperature control function, automatically adjust heat dissipation according to the environment, so that the equipment is always in the best state.

• WIFI control function, remote operation can be realized through the Lead Fluid APP software and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.

• External analog speed regulation, external control signal control start-stop, reversible direction, dispensing, external control signal , physical isolation.

• RS485 communication, the MODBUS protocol, supporting up to 80 programming instructions, convenient connect with various control devices.

• Open multiple control parameters for OEM customized applications.

• The circuit board is sprayed with three anti paint processes to achieve dust and moisture-proof effect.

• Super Anti-interference characteristics, wide voltage design, suitable for complex power supply environment.



Technical Specifications

Flow range	0.005 to 3000mL/min
Speed range	0.1 to 600 rpm
Speed resolution	0.1rpm
Speed accuracy	＜±0.2%
Delayed startup time	0.1 to 999.9 S/Min/H
Delay stop time	0.1 to 999.9 S/Min/H
Dispensing time	0.1 to 500 S/Min/H, time unit adjustable
Dispensing number	1 to 999, 0 Infinite cycle
Dispensing interval	0.1 to 50000 S/Min/H
External control signal input	Start/Stop: passive contact, external control input level (5 to 24V)  Forward/Reverse: passive contact, external control input level (5 to 24V)   Speed Regulation: analog 0 to 5V, 0 to 10V, 4 to 20mA can be set.
External control signal output	Start/Stop: Level Signal (following input voltage)   Forward/Reverse: Level Signal (following input voltage)   Speed Status: Analogue 0 to 5V
Communication interface	RS485 communication interface, Modbus protocol is available, WIFI remote control(optional)
Power supply	AC100 to 240V，50Hz/60Hz
Power consumption	<60W
Working environment	Temperature 32 to 104 °F (0 to 40℃), relative humidity＜80%
IP grade	IP31

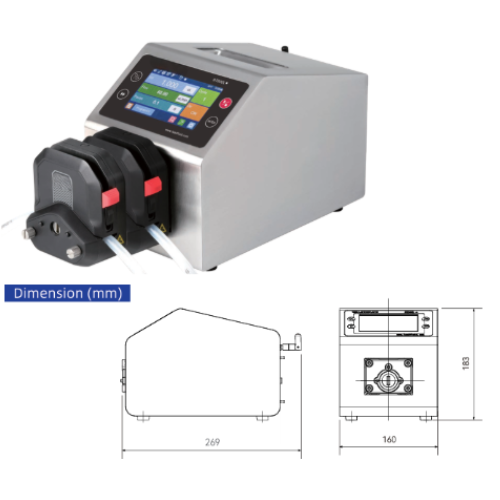

Dimension (L×W×H)	10.59 × 6.30 × 7.20 in (269 X 160 X 183 mm)
Weight	12.13 lb (5.5 kg)
