Overview

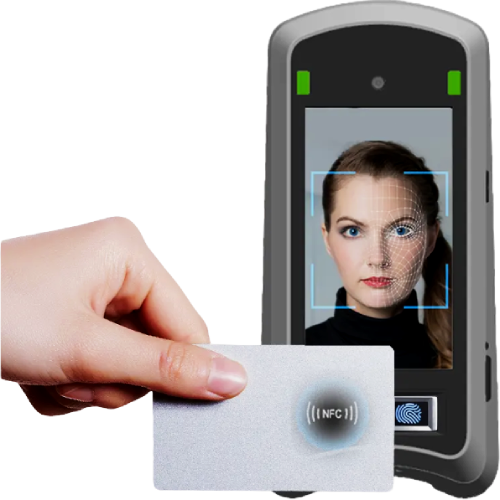

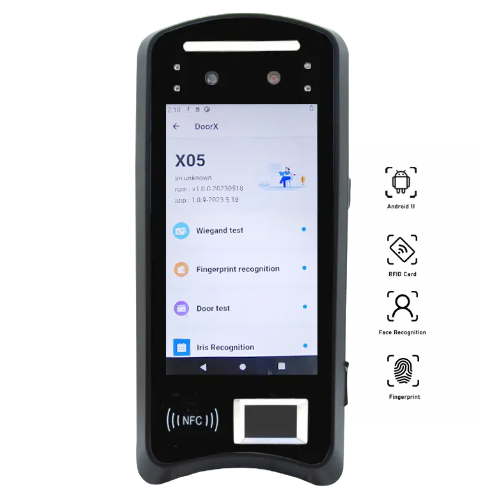

GAOTek Iris Attendance Device with 20K Face Data & POE Support is an advanced biometric authentication system designed for seamless access control and attendance tracking. This device operates on a full-opened Android 11 system, making it highly adaptable for software development and integration.
Equipped with a built-in POE power system, a rechargeable battery (lasting 3 to 6 hours), and DC charging, this product ensures uninterrupted operation in various environments. It also offers multiple communication options, including WiFi, 4G, LTE, Bluetooth, and Ethernet, providing flexibility for different network infrastructures.
Additionally, this device supports video door phone functionality and comes with a complete SDK, enabling easy software development and integration for customized applications. Its robust biometric capacity allows for 20,000 face records, 20,000 fingerprints, 100,000 cards, and 50,000 iris scans, making it ideal for businesses, schools, and secure access environments.
Technical Specifications
| Product Type | Iris recognition attendance machine |
| Operating System | Android 11, 2GB RAM + 16GB storage |
| Screen Size | 5.0-inch touchscreen |
| Face/Fingerprint Capacity | 20,000 users |
| NFC/IC | 13.56MHz, 125kHz (optional) |
| Communication | 4G, WIFI, ethernet, BLE |
| Power Supply | Built-in POE (no additional cabling required) |
| Wiegand Interface | Supports Wiegand 26/34 input/output |
| Other Interfaces | Micro USB (Type-C optional), USB, RS232, Relay |
| Special Features | Waterproof, night vision, reset button, built-in siren |
| Screen | 5 inches |
| Dimension | 8.86 in x 4.53 in x 0.45 in (225 mm x 115 mm x 11.5mm) |
| Net Weight | 2.87 lb (1.3 kg) |
| Biometric Capacity | 20000 faces 20000fingerprints 100000 cards 50000 iris |
| Logs | 1,000,000(auto override) |
| Detecting Distance | Face: 0 to 13.12 ft (4 meters), adjustable IRIS: 1.64 to 3.28 ft (0.5 to 1 meter) |
| Cameras | Face recognition & iris: binocular, RGB camera & infrared camera, to reject photos & videos |
| RGB & Infrared Camera | Progressive scan CMOS |
| Communication | TCP or IP, WIFI, 4G, USB, GPS, Ble, Wiegand input & output, Relay |
| Ruggedness | IP45, Kind of waterproof and dustproof, suitable for outdoor usage |
| Voice Volume | 0 to 10(default: 5) |
| Lighting | 0 to 10(default: 5) |
| Installation | Wall mounted, other stands can be customized |
