Overview

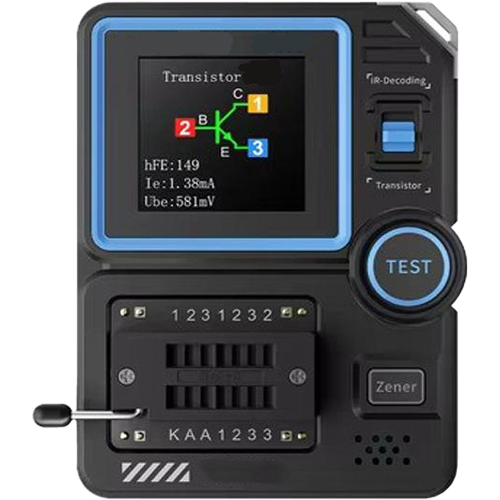

Emissions And Stack’s portable multifunction LCR component analyzer with USB-C is a compact device, laboratory-capable handheld tester designed for quick, accurate measurement of inductance, capacitance, resistance and component parameters. It measures capacitors, inductors, resistors, diodes and transistors, decodes NEC infrared signals, and provides ESR and battery checks. Featuring a 1.44-inch colour display, user-replaceable test board, USB Type-C charging and a 300 mAh battery, it includes automatic capacitor discharge and anti-burn protection for safe operation. One-button automatic recognition and precise pre-measurement conditioning make it excellent for R&D benches, repair work, education and field service where portability and dependable component diagnostics are required.
Features
- 1.44-inch colour display for clear readouts
- USB Type-C charging with 300 mAh battery for portable use
- One-button automatic component recognition for fast testing
- Replaceable test board for flexible DUT handling
- Automatic capacitor discharge and anti-burn protection
- Wide measurement ranges for C, L, R and transistor/diode parameters
- NEC infrared decoding for remote control diagnostics
- Compact, portable design suitable for lab, repair, education and field work
Technical Specifications
|
Primary Functions |
Capacitance, inductance, resistance, diode, transistor, MOSFET, SCR, ESR and battery tests; infrared (NEC) decoding |
|
Display |
1.44-inch colour screen |
|
Battery & Charging |
300 mAh lithium battery, |
|

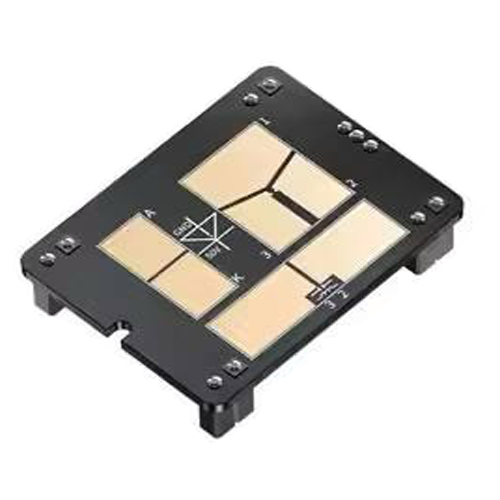

Replaceable Test Board |
Yes — user-replaceable test board for varied DUTs |
|
Protection Features |
Automatic capacitor discharge on insertion, intelligent anti-burn protection |
|
Automatic Functions |
One-button automatic component recognition, |
|
Capacitor Range |
25 pF to 100 mF |
|
Resistor Range |
0.01 Ω to 50 MΩ |
|
Inductor Range |
10 µH to 1000 µH |
|
Transistor / Gain Range |
DC current gain (β) 10 to 600 |
|
Diode Test |
Forward voltage drops less than 4.5 V |
|
Voltage Regulator / Breakdown Test |
0.01 V to 32 V (various test areas) |
|
Battery Test Range |
0.1 V to 4.5 V |
|
Infrared Decoding |
NEC protocol; displays user code and data code |
|
Packing List (Included) |
Host, replaceable test board, USB data cable, user manual, test hooks |
|
Temperature Specs |
32 °F to 104 °F (0 °C to 40 °C) |
|
Dimensions |
2.80 in x 3.43 in x 1.10 in (71 mm x 87 mm x 28 mm) |
|
Weight |
0.55 lb (0.25 kg) |
