| Functions |

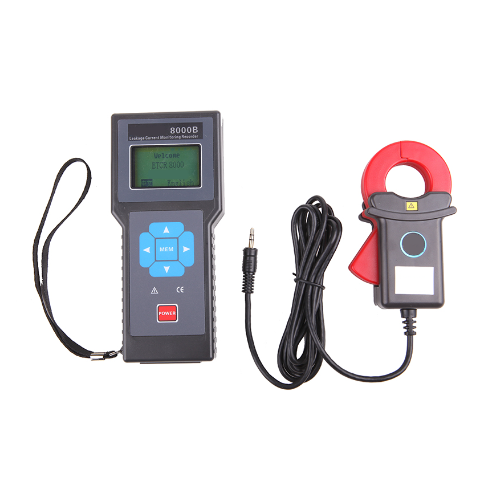

Measuring AC leakage current and AC current, monitoring current in real-time manner, locating insulation faults and repairing electrical lines. |
| Power source |
DC6V, alkaline battery LR03 1.5V×4 |
| Testing Method |
Split core type CT, true RMS |
| Range |
0.00mA-20A |
| Resolution |
0.01mA |
| Accuracy |
±2%±5dgt |
| Clamp size |
25mm×30mm |
| Instrument Dimension |
Tester(L×W×H): 75mm ×170mm ×30mm,Current clamp(L×W×H): 115mm ×70mm ×33mm |
| Mass |
Tester: 410g (battery included),Current clamp: 170g |
| LCD Dimension |
Display field: 44mm×27mm |
| Shield Type |
Type B: Double shielding |
| Sampling Rate |
2 samples/s |
| Data storage |
4200 sets (data loss does not occur after power failure or replacing the battery) |
| Time Setting |
Recording internal adjustable from 1 to 60 min, If set to 0 min, the auto-store function is turned off |
| Recording Time |
Continuously operate for about 10 days at the power-saving mode |
| Line Voltage |
Line with a voltage up to AC600V |
| Overflow Display |
A “OL” symbol is displayed when a measured value is beyond the measurement range |
| Battery. Voltage |
A Low-Battery symbol is displayed and the user should replace the battery with a new one when the battery voltage drops to 4.6V to 4.8V. In this case, the measured values are still accurate. |
| Rated Power |
about 5mA at the power-saving mode, maximum current consumption: 20mA |
| Lead Length |
2 m |
| Temperature and Humidity |
Working: -20℃～50℃；below 80%rh |
| Storage: -20℃～50℃；below 70%rh |
| Insulation Resistance |
Higher than 100MΩ, 1000V |
| Safety Codes |
IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT Ⅲ(600V), IEC61326(EMC standard) |
