Overview

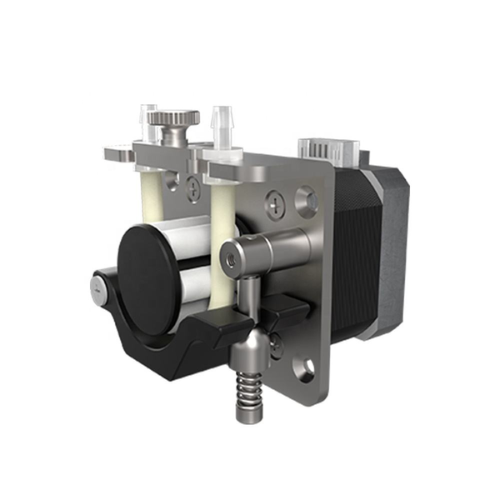

Emissions And Stack low flow peristaltic pump is designed for precise dosing in industrial and laboratory applications with flow rates from 0.01 to 155 ml/min. It features a reliable 24V stepper motor drive and advanced rotor design for stable operation. The pump supports both silicone and BPT tubing to ensure compatibility with different media. Its compact, lightweight, and low-noise build makes it ideal for continuous use.
Features
- Adjustable flow rate from 0.01 ml/min to 155 ml/min
- 24V stepper motor drive with precise control
- Supports BPT and silicone tubing for varied applications
- Long motor life up to 6000 hours
- Low operating noise ≤ 50 dB
- Compact design with easy installation
- Suitable for continuous and intermittent dosing
- Available in 3-rotor or 6-rotor configuration
Technical specifications
| Pump Type | Mini Peristaltic Pump |
| Flow Range | 0.01 ml/min – 155 ml/min |
| Voltage | 24V DC |
| Motor Type | Stepper motor |
| Control Method | Stepper motor driver |
| Power | 20W |
| Pressure Rating | Low pressure |
| Number of Rotors | 3 or 6 |
| Pump Tube Material | Silicone / BPT |
| Pump Tube Life | Silicone: ≥200 h, BPT: ≥1000 h |
| Motor Life | 6000 h |
| Noise Level | ≤50 dB |
| Weight | ~560 g |
| Gross Weight | ~1 kg |
| Product Dimensions | 17 × 12 × 15 cm |
| Structure | Peristaltic mechanism |
| Power Source | Electric |
| Applications | Automotive, biofuel, food & beverage, pharmaceutical, wastewater treatment, cleaning, water treatment |
| Drive System | Stepper motor precision drive |
| Installation | Compact and easy to integrate |
| Control Type | Manual or automated control via driver |
| Housing Material | Durable engineering plastic |
| Design | Lightweight, low noise, portable |
| Flow Accuracy | High dosing precision |
| Duty Cycle | Continuous or intermittent operation |
| Eco-Friendly | Safe material and energy efficient |
| Operating Temperature | 0 – 40 °C / 32 – 104 °F |
| Weight | 560 g |
