Overview

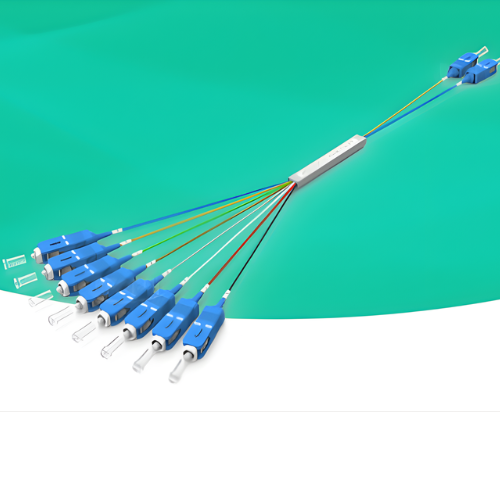

Optical fiber PLC splitter is an integrated wave- guide optical power distribution device based on quartz substrate, which is especially suitable for connecting the terminal equipment in the PON network and dividing the optical information in the optical fiber communication system into multiple outputs. It has the characteristics of small size, compact mechanism, low insertion loss, uniform power distribution, and good environmental adaptability. Mini Module type PLC splitter is small in size, can be installed in a fiber optic closure or other small-er space.
Technical Performance
| Item | Parameter | |||||
| Specification | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Working Wavelength | 1260–1650 nm | |||||
| Test Wavelength | 1310 nm, 1550 nm | |||||
| Insertion Loss (Grade P) | ≤ 4.1 dB | ≤ 7.6 dB | ≤ 10.9 dB | ≤ 14.3 dB | ≤ 17.6 dB | ≤ 21.2 dB |
| Uniformity | ≤ 0.9 dB | ≤ 1.1 dB | ≤ 1.3 dB | ≤ 1.7 dB | ≤ 2.0 dB | ≤ 2.3 dB |
| Polarization Dependent Loss (PDL) | ≤ 0.2 dB | ≤ 0.3 dB | ≤ 0.3 dB | ≤ 0.3 dB | ≤ 0.4 dB | ≤ 0.4 dB |
| Return Loss | UPC ≥ 50 dBAPC ≥ 60 dB | |||||
| Directivity | ≥ 55 dB | |||||
| Operating Temperature | -40°C to +85°C | |||||
| Storage Temperature | -40°C to +85°C | |||||
Note:
- Specified without connectors.
- Add an additional 0.4 dB loss per connector.
Product Parameters Table
| Item | Parameter | |||||
| PLC Splitter SPEC | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Fiber Type | G657A1 | |||||
| Package Size (L×W×D) | 60×7×4 mm | 60×12×4 mm | 80×20×6 mm | 100×40×6 mm | ||
| Tube Type (Input) | IEC Ø0.9 mm colorful tube / Ø0.9 mm white tube | |||||
| Tube Type (Output) | IEC Ø0.9 mm colorful tube / Ø0.9 mm white tube | |||||
| Input Length | 1.5 m / customizable | |||||
| Output Length | 1.5 m / customizable | |||||
| Connector Type (IN) | SC / FC / LC / ST / Custom | |||||
| Polishing (IN) | APC / UPC | |||||
| Connector Type (OUT) | SC / FC / LC / ST / Custom | |||||
| Polishing (OUT) | APC / UPC | |||||
