Overview

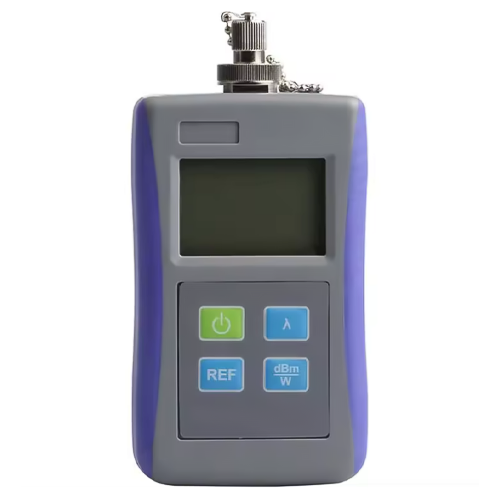

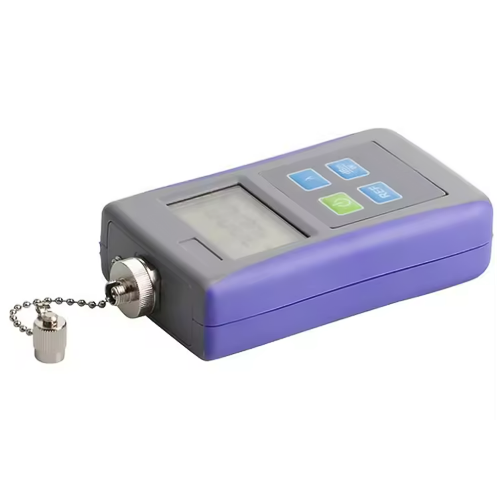

Emissions And Stack Mini Portable Optical Power Meter is a handheld device designed for precise measurement and testing of fiber-optic networks. This device is widely used for installation, operation, and maintenance of fiber cables in telecom, R&D, training, and optical cabling systems. It features a universal connector compatible with FC, SC, and ST interfaces, high sensitivity with a large dynamic range, and quick response without warm-up. This product includes a large backlit LCD, optional auto-shutdown, low-voltage display, and automatic calibration function, making it ideal for field use. Powered by 3 AAA 1.5V batteries, it provides long-lasting operation with up to 120 hours of battery life.
Features
- It provides high sensitivity with a large dynamic range for precise fiber-optic measurements
- Supports universal connectors: FC, SC, ST (LC/MU optional)
- Quick response without warm-up, reducing testing time
- Includes large backlit LCD display for easy reading
- Optional auto-shutdown to save battery power
- Low-voltage display function alerts when battery is low
- Automatic calibration function ensures accurate measurements
- Supports relative ratio testing
- Portable and lightweight, ideal for field testing and installation
Technical Specifications
| Type | Optical Fiber Test Equipment |
| Use | FTTH / Fiber Cable Installation and Maintenance |
| Detector | InGaAs |
| Wavelength Range | 800 to 1650 nm |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550, 1625 nm |
| Measurement Range (DBM) | -70 to +10 / -50 to +26 |
| Uncertainty | ±5% |
| Resolution (DB) | 0.01 |
| Optical Connector | FC SC ST / Universal 2.5 mm adaptor (LC, MU optional) |
| Power Supply | 3 × AAA 1.5V batteries |
| Battery Working Time | 120 hours |
| Automatic Shutdown | 10 minutes |
| Operating Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to +70 °C) |
| Weight | 5.64 oz (160 g) |
| Size / Dimensions | 4.92 in x 2.56 in x 1.14 in (125 mm x 65 mm x 29 mm) |
