Overview

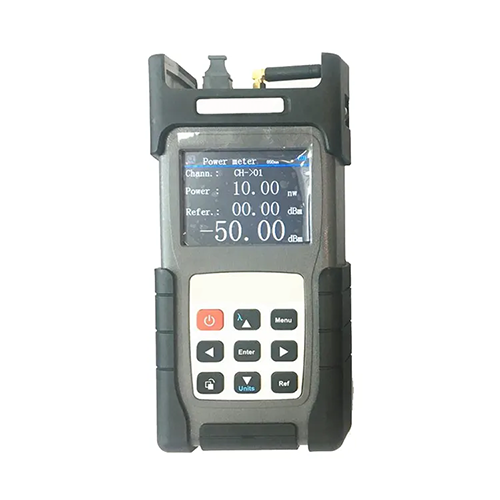

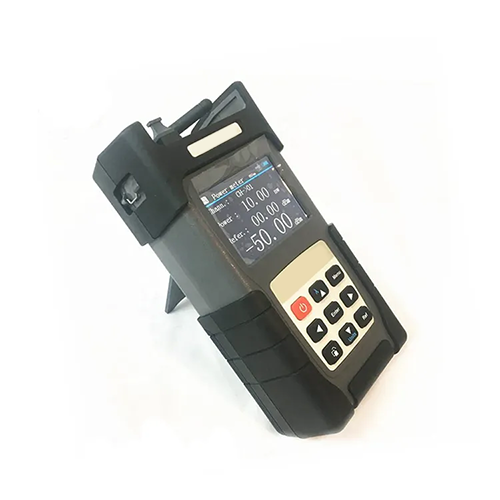

Emissions And Stack Optical Power Meter is specially designed for testing MPO fiber, to meet the rapidly growing requirement and market for multi fibers (MPO) connection, with data centers and cloud computing rocketing. It can test the insertion loss of MPO fibers and polarity very easily and quickly, integrated with a variety of functions such as data storage, threshold analysis, data export and other applications. The test efficiency is more than 10 times improved.
Features
- 100 data records
- Built-in 3500 mAh large-capacity lithium battery that can be used for more than 10 hours
- Users can customize the threshold for testing
- One key switching of four function interfaces (single-channel power, 12-channel power meter MPO line sequence test, histogram interface)
- The USB interface can be used to directly copy data to the computer.
- High-resolution and colorful display
- If five minutes of no-operation, the screen will automatically adjust the backlight and enters an energy-saving mode
- 12, 24, customize channel number
- User-friendly – Computer interaction interface and easy to operate
Technical specifications
| Detector | InGaAs |
| Wavelength Range | 850 nm to 1700 nm |
| Calibration Wavelength | 850 nm or 1300 nm or 1310 nm or 1550 nm |
| Optical Power Meter Range | + 3 dBm to 50 dBm |
| Insertion Loss Accuracy | < 0.2 s/channel |
| Resolution | 0.01 dB |
| IL accuracy | ± 0.1 dB |
| Channel | 12 |
| Linearity | ± 0.2 dB (+ 5 to -50 dBm) |
| Connector | USB |
| Interface Type | SM/MM MPO/PC 12/24 core Female connector |
| Dimension | 8.07 in × 4.53 in × 2.17 in (205 mm x 115 mm x 55 mm) |
| Weight | 0.66 lb (300 g) |
