Overview

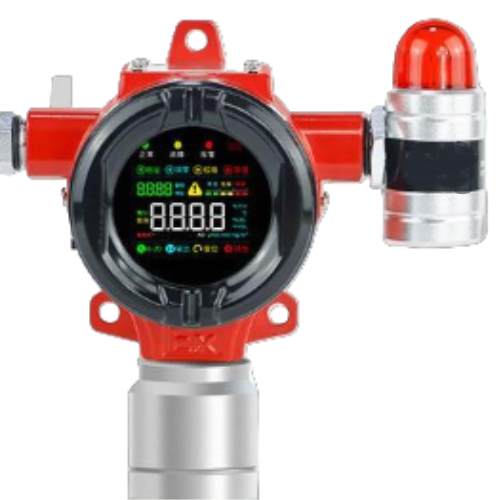

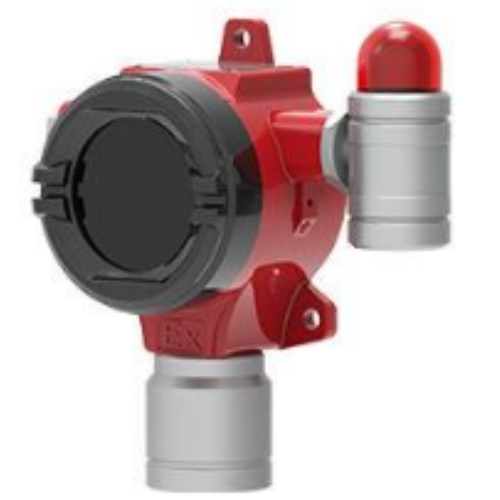

It is an industry-grade gas detector independently developed by our company. Industrial-grade detector for Class II hazardous areas & non-hazardous zones. Practical, user-friendly design.
Features
- Multi-Gas Detection: Configurable sensors for precise gas monitoring.
- Optional Display/Alarm: Color segment screen & audible/visual alarm (real-time data/alerts).
- High Accuracy: Multi-point calibration ensures precision.
- Dual Output: 4-20mA analog + digital for remote control.
- Safety Automation: Dual-stage alarms trigger fans/solenoid valves.
- Easy Maintenance: Modular design + one-touch backup/reset.
Technical Specifications
| Probe Style | LCD, LCD sound and light |
| Detection Method | Diffusion |
| Electrical Interface | G1/2 = four points |
| Working Voltage | DC24V (DC: direct current AC: alternating current) |
| Detection Range | (0-100)%LEL/(3-100)%LEL (LEL: lower explosion limit) |
| Minimum Reading | 1%LEL |
| Indication Error | ±5%FS. (FS: full scale definition) |
| Working Temperature | Combustible: -40~70℃ Other gases: -10~55℃ Humidity: <93% (non-condensing) |
| Connection Cable | Branch line RVVSP3*1.0mm2 (4-20ma) analog bus RVV2*1.5mm2 RVVSP2*1.5mm2 digital signal |
