Overview

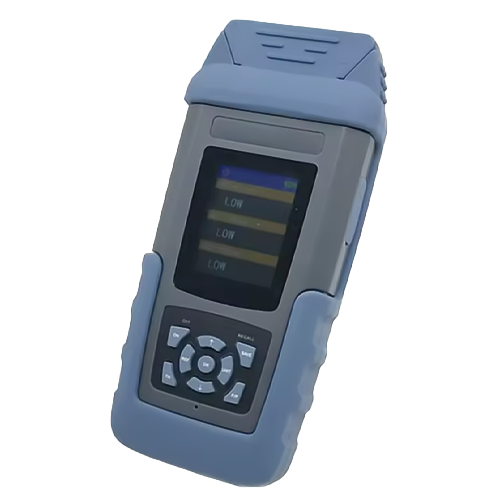

Emissions And Stack Optical Fiber PON Power Meter is specifically designed for PON network construction and maintenance, making it a reliable site testing tool for engineers and maintenance operators working on FTTX networks. This product performs in-service testing of all PON signals (1310 nm, 1490 nm, and 1550 nm) at any point in the network. It allows users to conduct pass/fail analysis with adjustable thresholds for each wavelength. This device also includes functions such as automatic backlight off, low voltage power-off protection, battery voltage display, and large data storage capacity, making it efficient and convenient for field applications.
Features
- Simultaneous measurement of three wavelengths (1310 nm, 1490 nm, 1550 nm)
- Adjustable threshold value setting function
- Automatic backlight off for power saving
- Displays battery voltage status
- Automatic power-off in low voltage conditions
- Data storage capacity for up to 1000 groups
- Accurate burst signal measurement with high precision
Technical Specifications
| Standard Wavelengths | 1310 nm (upstream), 1490 nm (downstream), 1550 nm (downstream) |
| Pass Zone | 1260 to 1360 nm, 1480 to 1500 nm, 1530 to 1570 nm |
| Measurement Range | -40 to +10 dBm (1310 nm), -50 to +10 dBm (1490 nm), -50 to +25 dBm (1550 nm) |
| Maximum Permitted Input Power | 15 dBm (1310/1490 nm), 25 dBm (1550 nm) |
| Isolation at 1310 nm | >40 dB |
| Isolation at 1490 nm | >40 dB |
| Isolation at 1550 nm | >40 dB |
| Accuracy of Burst Signal | Deviation <±0.5 dB at -10 dBm |
| Optical Fiber Type | Single Mode 9/25 µm |
| Connector Type | SC/APC |
| Accuracy | ±0.2 dB to ±0.5 dB (burst mode) |
| Linearity | 0.1 dB |
| Through Insertion Loss | <1.5 dB |
| Resolution | 0.01 dB |
| Measurement Units | dBm or W |
| Storage Capacity | 1000 items |
| Auto Power-Off | Included |

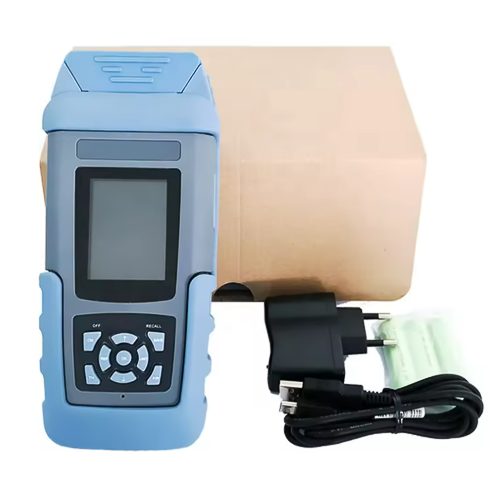

| Power Supply | 3 x AA batteries or AC/DC adapter |
| Operating Temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Weight | About 12.35 oz (350 g) |
| Dimensions (In) | 1.65 in x 3.54 in x 7.68 in (42 mm x 90 mm x 195 mm) |
