Overview

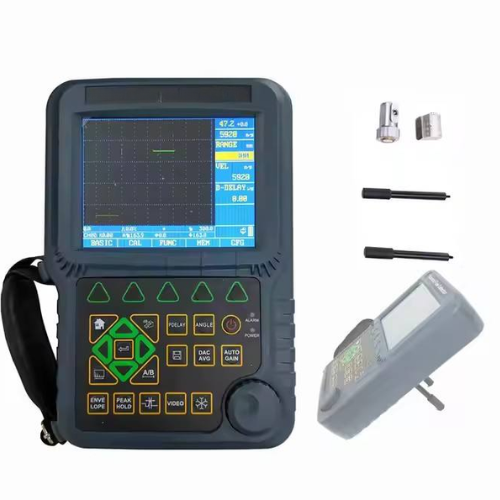

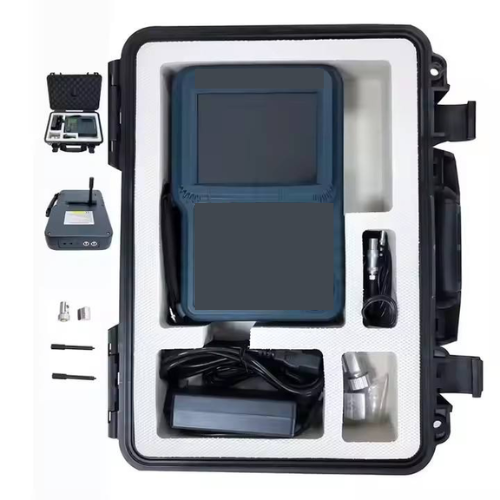

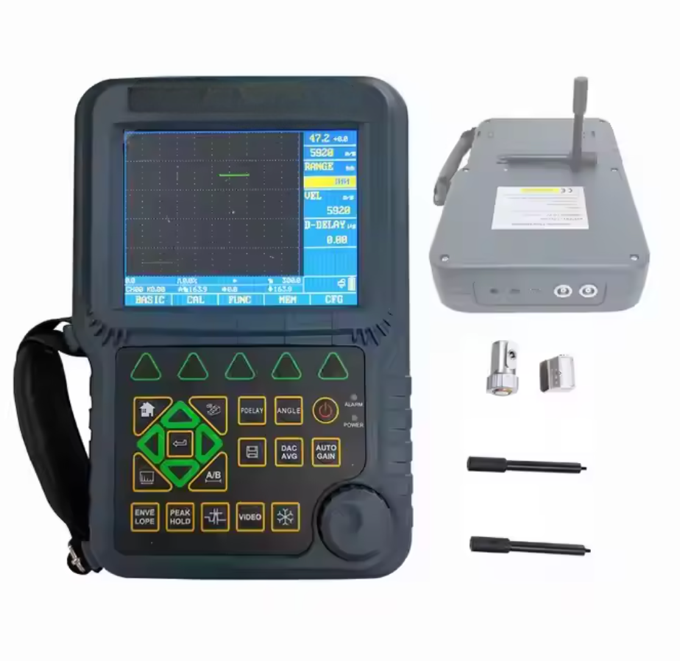

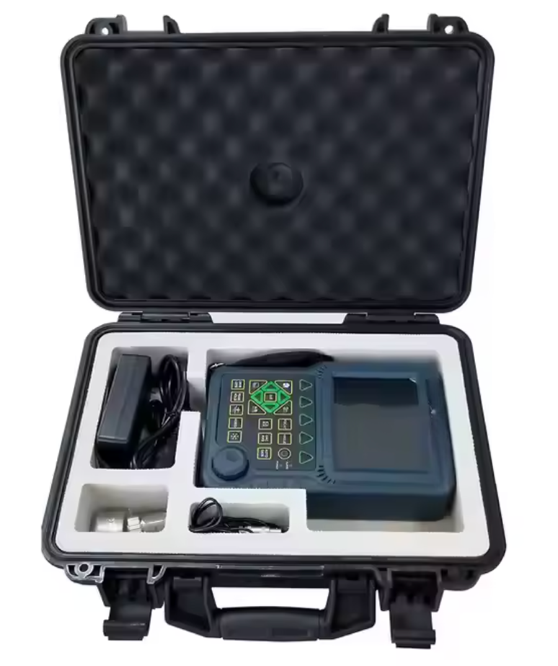

Emissions and Stack Phased Array Ultrasonic Flaw Detector for Non-Destructive Testing is a high-performance device designed for accurate flaw detection and material evaluation. This product provides a wide examination range of up to 9999 mm and supports working frequencies between 0.2 MHz to 20 MHz, making it suitable for various industrial applications. With a dynamic range of ≥36 dB, excellent vertical and horizontal linearity, and low electrical noise, it ensures reliable and precise results. This device also offers a broad sound speed range of 1000 to 15000 m/s, enabling compatibility with different materials. Built with a durable structure, a user-friendly interface, and compact dimensions, this product is an ideal solution for professionals requiring advanced ultrasonic flaw testing in demanding environments.
Features
- Wide examination range of 0 to 9999 mm for versatile inspections
- Broad working frequency range of 0.2 to 20 MHz for enhanced adaptability
- Adjustable sound speed range from 1000 to 15000 m/s for varied materials
- High dynamic range (≥36 dB) for precise flaw detection
- Vertical linearity error ≤2.5% and horizontal linearity error ≤0.1% for accurate results
- Strong discrimination level >40 dB for reliable flaw identification
- Low electrical noise level ≤8% ensuring signal clarity
- Compact design with dimensions of 10.35 x 6.69 x 2.40 in (263 x 170 x 61 mm)
- Portable and user-friendly with durable plastic construction
Technical Specifications
| Type | Ultrasonic flaw detector |
| User | Adults |
| Material | Plastic |
| Product Name | Ultrasonic thickness gauge |
| Examination Range | 0 mm to 9999 mm (0 in to 393.66 in) |
| Working Frequency | 0.2 MHz to 20 MHz |
| Sound Speed Range | 1000 m/s to 15000 m/s (3280.84 ft/s to 49212.6 ft/s) |
| Dynamic Range | ≥36 dB |
| Vertical Linearity Error | ≤2.5% |
| Horizontal Linearity Error | ≤0.1% |
| Discrimination | >40 dB (5P14) |
| Electrical Noise Level | ≤8% |
| Product Weight | 8 kg (17.64 lb) |
| Dimensions | 263 mm x 170 mm x 61 mm (10.35 in x 6.69 in x 2.40 in) |
| Package Size | 430 mm x 390 mm x 140 mm (16.93 in x 15.35 in x 5.51 in) |
