Overview

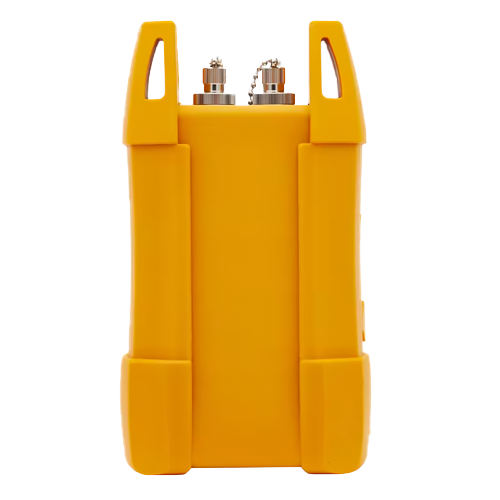

Emissions And Stack 10G PON Optical Power Meter is designed for precise optical power testing in FTTX networks. This device is suitable for XG(S)PON, 10G EPON, and G/E PON optical power measurements. It supports downstream wavelengths 1490, 1550, and 1577 nm, and upstream wavelengths 1270 and 1310 nm. This product features threshold setting with clear Pass/Fail indicators and can store up to 1000 groups of test data. It comes with multiple communication options, including USB Type-C, and offers high measurement accuracy with a resolution of 0.01 dB. Lightweight and portable, this device is ideal for field testing and maintenance of fiber networks.
Features
- Supports XG(S)PON, 10G EPON, and G/E PON optical power testing
- Measures downstream 1490 to 1550 to 1577 nm and upstream 1270 to 1310 nm wavelengths
- Threshold setting with Pass/Fail indicator for quick testing
- Stores up to 1000 groups of test data
- High resolution of 0.01 dB for precise measurements
- Optional Bluetooth connectivity and USB Type-C communication port
- Portable and lightweight design for field use
- Comes with accessories: power adapter, USB cable, FC and SC adapters, ceramic sleeves, batteries, test report, quick guide, and carrying bag
Technical Specifications
| Type | Fiber Optic Equipment |
| Use | FTTX Testing |
| Network Support | WiFi, GSM, 3G, Wired LAN, 4G, GPRS |
| Wavelength | 1270 to 1310 nm (upstream), 1490 to 1550 to 1577 nm (downstream) |
| Isolation Rate | 1310 nm >40 dB, 1490 nm >40 dB, 1550 nm >40 to 30 dB |
| Test Range | -50 to +23 dBm |
| Insertion Loss | <1.5 dB |
| Broadband | 1260 to 1360 nm, 1480 to 1500 nm, 1539 to 1565 nm |
| Accuracy | ±0.5 dB ± 1 nW @ 1550 nm |
| Resolution | 0.01 dB |
| Threshold | 10 groups (configurable via PC software) |
| Data Storage | Up to 1000 groups |
| Communication Port | USB Type-C |
| Bluetooth | Optional |
| Power Supply | 2× AA Ni-MH battery or 5V/1A AC/DC adapter |
| Operating Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Weight | 14.11 oz (400 g) |
| Size / Dimensions | 6.30 in x 2.99 in x 1.77 in (160 mm x 76 mm x 45 mm) |
