Overview

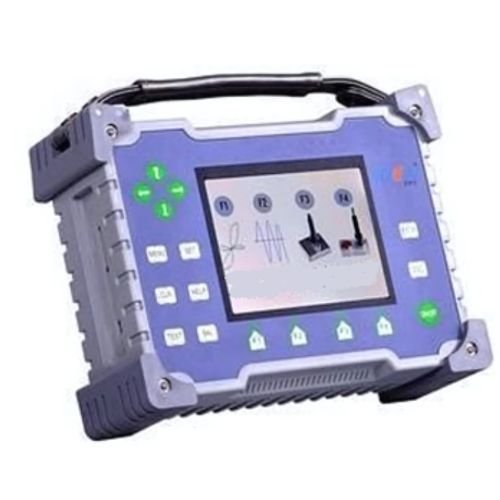

Emissions and Stack portable digital eddy current flaw detector adopted the most advanced ARM and DSP fusion technique, in comparison with the congeneric product, got great improvement on the signal processing speed, detecting speed and accuracy. As an outstanding member of our testing instrument series, not only has all the functions of conventional digital dual-frequency eddy current detector, but also applicable to the conductivity and thickness measuring. It is capable of nearly all the eddy current testing application and can totally take place of import muti-functional eddy current testing equipment. With intelligent mixing frequency unit, it can effectively restrain jamming signals. is widely used in the industries as military, aviation, metallurgy and automobile etc, it is able to detect and access the flaw quickly and accurately in aircraft component, such as structural alloy, airframe, engine vane, wheel hubs, landing gear, rivet inner & outer crack, aluminum surface, fuselage wing joint etc. The conductivity and thickness measuring is featured with wide testing range, and high testing accuracy. Fool-style operation and no requirement of long-time training of the testing personnel. Especially good applicable for the in-service & pre-service inspection in aviation, aerospace, electricity and petro chemistry industry etc
Features
- Big screen , high brightness colorful 5.7 inches TFT-LCD, work out the fault of the tradition single screen display.
- Independent dual frequency detection
- Intelligent and frequency mixing design
- Intelligent digital design, convenient operation
- According to user needs to provide professional testing programs
- It is expertly designed, reasonable design and simple to operate.
- Simple, real-time on-screen instructions, can be realized fool-type operation
Applications
- Military
- Aviation
- Wind Power
- High-Speed Rail
Technical Specifications
| Basic Parameter | |
| L X W X H | 210 MM x 130 MM x 60 MM |
| Screen | Resolution 640 X 480 5.7’ TFT Color LCD |
| Weight | 2 Kg (Including Battery) |
| Interfaces | LEMO-6 LEMO-15 DB-25 Lithium: 12V 3000mAH |
| Power Supply | 110V/60hz 220V/50hz |
| Operating Temperature | -20° ～ 50°C |
| System Parameter | |
| CPU | ARM11 Embedded 32 500M Processor |
| Operating System | liunx 2.6 |
| RAM | 256M |
| SD CARD memory capacity | 8G |
| USB interface | 12M/S, USB-2.0（Host/Slave） |
| Encoder | 1024 Pulse/Round Resolution:0.1mm |
| LCD Luminance | 1-8 Grade |
| Inspection Parameter | |
| Independent Detection Frequency | 2 in total |
| Frequency Range | 10 Hz～10 MHz，Step 1 Hz |
| Gain | 0 dB～99 dB，Step 0.1 dB |
| Phase | 0～359°，Step 1 Deg |
| Intelligent Mixing Unit | 1 in total |
| Probe Driver | Vpp=1～8V |
| Probe Impedance | 50Ω 100Ω |
| X&Y Gain Control | Y/X = 0.1—10 |
| Calibration Curve | Amplitude Phase Equivalent |
| Display Mode | Impedance, time base, rectangular coordinates, polar coordinates |
| Scanning Speed | 1-100 Grade |
| Center coordinates | X Y adjustable |
| Digital Signal | |
| Digital Filtering | HPF（0Hz～2000Hz）、LPF（0Hz～2000Hz） |
| Filtering Points | 1-1024 |
| Broadband | 100Hz～10MHz |
| A/D Velocity | 16bit 100M |
| Min-Senstivity | 1mV |
| Real-Time Average | 2 4 8 16 32 |
| Automatic Balance | Digital Electronic Balance |
| Alarm Set | |
| Type | Phase/Non-continuous Windows and Door Frame |
| Gate | A/B |
| Amplitude Value | 10%-120% |
| Sound | On/Off |
| Peripheral | Photoelectric I/O |
| Parameter Storage | |
| Detection Save,Delete,Edit | above 10000 sets |
| Real-time signal preservation,playback,analysis,save and print | 8G/24Hour |
| Testing Pics | Above 10000 PCS |
| USB Storage | Available |
| Online/Wireless | |
| Help System | |
| Automatically display date,time and battery capacity | True |
| Easy operation,real-time screen point-out | True |
| Online hotkey,graphics,words help | True |
